Find equivalent capacitance between $A$ and $B$......$C$
Diffcult
Download our app for free and get started

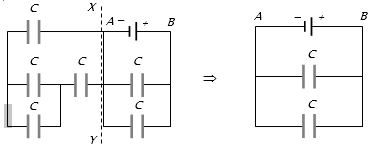

(d) All capacitor lying in left side of line $XY$ are short circuited so circuit can be reduced as follows
${C_{AB}} = 2\,C$
${C_{AB}} = 2\,C$
