MCQ
Find magnetic field at $O$
- ✓$\frac{{5{\mu _0}i\theta }}{{24\pi r}}$
- B$\frac{{{\mu _0}i\theta }}{{24\pi r}}$
- C$\frac{{11{\mu _0}i\theta }}{{24\pi r}}$
- DZero
✓
Answer
Correct option: A.
$\frac{{5{\mu _0}i\theta }}{{24\pi r}}$
a
(a) ${B_1} = {B_3} = {B_5} = 0$
${B_2} = \frac{{{\mu _0}}}{{4\pi }}.\frac{{\theta i}}{{3r}} \otimes ,\;{B_4} = \frac{{{\mu _0}}}{{4\pi }}.\frac{{\theta i}}{{2r}}$ $\odot$
and ${B_6} = \frac{{{\mu _0}}}{{4\pi }}.\frac{{\theta i}}{r} \otimes $
$\therefore $ Net magnetic field at $O$,
${B_{net}} = {B_2} - {B_4} + {B_6}$ $ = \frac{{{\mu _0}}}{{4\pi }}.\frac{{\theta i}}{r}\left( {\frac{1}{3} - \frac{1}{2} + 1} \right) = \frac{{5{\mu _0}\theta i}}{{24\pi r}}$
(a) ${B_1} = {B_3} = {B_5} = 0$
${B_2} = \frac{{{\mu _0}}}{{4\pi }}.\frac{{\theta i}}{{3r}} \otimes ,\;{B_4} = \frac{{{\mu _0}}}{{4\pi }}.\frac{{\theta i}}{{2r}}$ $\odot$
and ${B_6} = \frac{{{\mu _0}}}{{4\pi }}.\frac{{\theta i}}{r} \otimes $
$\therefore $ Net magnetic field at $O$,
${B_{net}} = {B_2} - {B_4} + {B_6}$ $ = \frac{{{\mu _0}}}{{4\pi }}.\frac{{\theta i}}{r}\left( {\frac{1}{3} - \frac{1}{2} + 1} \right) = \frac{{5{\mu _0}\theta i}}{{24\pi r}}$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
A ball is dropped from a height $h$ above ground. Neglect the air resistance, its velocity $(v)$ varies with its height above the ground as
→The surface charge density of a thin charged disc of radius $R$ is $\sigma $. The value of the electric field at the centre of the disc is $\frac{\sigma }{{2\,{ \in _0}}}$. With respect to the field at the centre, the electric field along the axis at a distance $R$ from the centre of the disc
→The radius of a circular coil is $R$ and it carries a current of $I$ ampere. The intensity of magnetic field at a distance $x$ on the axis from the centre $(x >>R)$ will be
→Four ammeters with identical internal resistances $r$ and a resistor of resistance $R$ are connected to a current source as shown in figure. It is known that the reading of the ammeter $A_1$ is $I_1 = 3\ A$ and the reading of the ammeter $A_2$ is $I_2 = 5\ A$ . Determine the ratio of the resistances $R/r$ .
→$A$ block of mass $m$ is attached to a pulley disc of equal mass $m$, radius $r$ by means of a slack string as shown. The pulley is hinged about its centre on a horizontal table and the block is projected with an initial velocity of $5\, m/s$. Its velocity when the string becomes taut will be
→The splitting of line into groups under the effect of electric or magnetic field is called
A chain of mass $m$ and length $l$ is hanging freely from edge $A$ (as shown in diagram $I$ ). Calculate the work done to fold it as shown in diagram $(II)$
→What is the path followed by a moving body, on which a constant force acts in a direction other than initial velocity (i.e. excluding parallel and antiparallel direction)?
A uniform ring of radius $R$ is moving on a horizontal surface with speed $v$, then climbs up a ramp of inclination $30^{\circ}$ to a height $h$. There is no slipping in the entire motion. Then, $h$ is

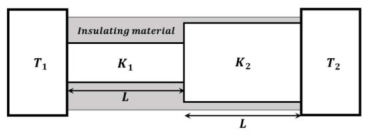

→Two conducting cylinders of equal length but different radii are connected in series between two heat baths kept at temperatures $T _1=300 K$ and $T _2=100 K$, as shown in the figure. The radius of the bigger cylinder is twice that of the smaller one and the thermal conductivities of the materials of the smaller and the larger cylinders are $K _1$ and $K _2$ respectively. If the temperature at the junction of the two cylinders in the steady state is $200 K$, then $K _1 / K _2=$ . . . . .
→
