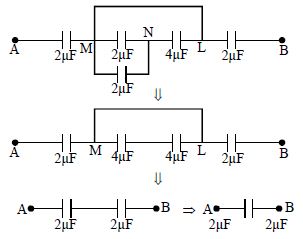

Find the equivalent capacitance between $A$ and $B$.......$\mu f$
Medium
Download our app for free and get started
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1A capacitor stores $60\ \mu C$ charge when connected across a battery. When the gap between the plates is filled with a dielectric , a charge of $120\ \mu C$ flows through the battery. The dielectric constant of the material inserted is :View Solution
- 2Two capacitors $C_1 = 4\ \mu F$ and $C_2 = 2\ \mu F$ are charged to same potential $ V = 500\ Volt$, but with opposite polarity as shown in the figure. The switches $S_1$ and $S_2$ are closed.View Solution
- 3A capacitor of capacity $'C'$ is connected to a cell of $'V'\, volt$. Now a dielectric slab of dielectric constant ${ \in _r}$ is inserted in it keeping cell connected thenView Solution
- 4A parallel-plate capacitor of area $A,$ plate separation $d$ and capacitance $C$ is filled with four dielectric materials having dielectric constants $K_1,K_2,K_3$ and $K_4$ as shown in the figure. If a single dielectric material is to be used to have the same capacitance $C$ in this capacitor, then its dielectric constant $K$ is given byView Solution
- 5A metallic spherical shell has an inner radius $R_1$ and outer radius $R_2$. A charge $Q$ is placed at the centre of the spherical cavity. What will be surface charge density on the inner surfaceView Solution
- 6If a battery of voltage $V$ is connected across terminals $I$ of the block box shown in figure, an ideal voltmeter connected to terminals $II$ gives a reading of $V/2$, while if the battery is connected to terminals $II$, a voltmeter across terminals $I$ reads $V$. The black box may containView Solution
- 7If an electron enters into a space between the plates of a parallel plate capacitor at an angle $\alpha $ with the plates and leaves at an angle $\beta $ to the plates, the ratio of its kinetic energy while entering the capacitor to that while leaving will beView Solution
- 8The capacities and connection of five capacitors are shown in the adjoining figure. The potential difference between the points $A$ and $B$ is $60\;volts$. Then the equivalent capacity between $A$ and $B$ and the charge on $5\,\mu F$ capacitance will be respectivelyView Solution
- 9In the circuit shown in figure, the ratio of charges on $5\ \mu F$ and $4\ \mu F$ capacitor is :View Solution
- 10In the circuit shown, initially there is no charge on capacitors and keys $S _1$ and $S _2$ are open. The values of the capacitors are $C _1=10 \mu F , C _2=30 \mu F$ and $C _3= C _4=80 \mu F$.View Solution
Which of the statement($s$) is/are correct ?
$(1)$ The keys $S _1$ is kept closed for long time such that capacitors are fully charged. Now key $S _2$ is closed, at this time, the instantaneous current across $30 \Omega$ resistor (between points $P$ and $Q$ ) will be $0.2 A$
$(2)$ If key $S _1$ is kept closed for long time such that capacitors are fully charged, the voltage difference between points $P$ and $Q$ will be $10 V$.
$(3)$ At time $t =0$, the key $S _1$ is closed, the instantaneous current in the closed circuit will be $25 mA$.
$(4)$ If key $S _1$ is kept closed for long time such that capacitors are fully charged, the voltage across the capacitors $C _1$ will be $4 V$.
