Question
Form the pair of linear equations in the following problems, and find their solution graphically:
5 pencils and 7 pens together cost Rs. 50, whereas 7 pencils and 5 pens together cost Rs. 46. Find the cost of one pencil and a pen.

Answer

Let the number of pencils and pens be x and y respectively.
According to questions.
5x + 7y = 50 .......(i)
7x + 5y = 46 ........(ii)
From (i), $\text{y}=\frac{50-5\text{x}}{7}\ ......(\text{iii})$
Putting x = 3 in (iii), we get y = 5
Putting x = -4 in (iii), we get y = 10
x
3
-4
y
5
10

From (ii), $\text{y}=\frac{46-7\text{x}}{5}\ ......(\text{iv})$
Putting x = 3 in (iv), we get y = 5
Putting x = -2 in (iv), we get y = 12
x
3
-2
y
5
12

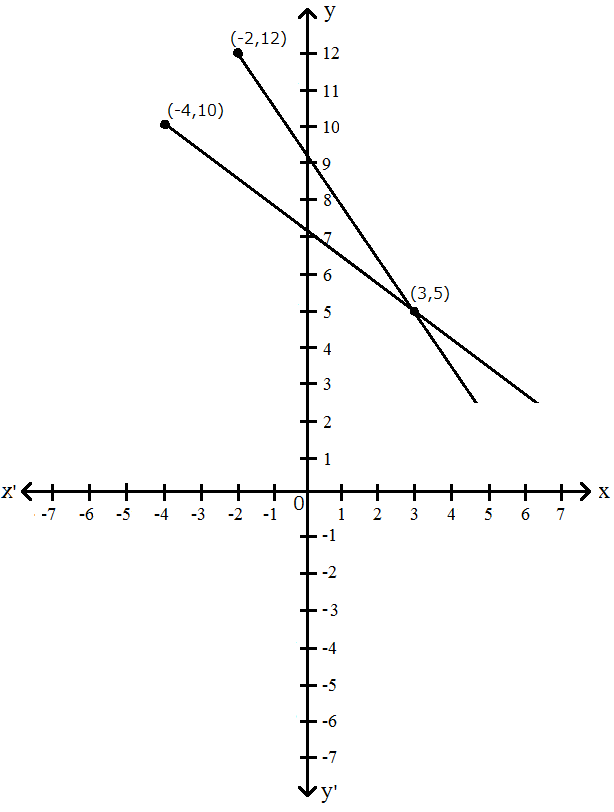

Thus, from graph cost of pencil = Rs. 3 and cost of pen= Rs. 5.
