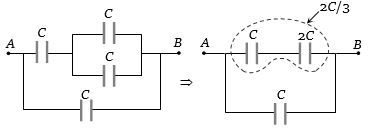

Four equal capacitors, each of capacity $C$, are arranged as shown. The effective capacitance between $A$ and $B$ is
