Question
Give a geometrical construction for finding the fourth point lying on a circle passing through three given points, without finding the centre of the circle. Justify the construction.
✓
Answer
Let $A, B$ and $C$ be the given points. With $B$ as the centre and a radius equal to $AC$, draw an arc. With $C$ as the centre and $AB$ as radius, draw another arc, which cuts the previous arcat $D$.
Then $D$ is the required point $BD$ and $CD$.
In $\triangle\text{ABC}$ and $\triangle\text{DCB}$
$AB = DC\ AC = DB\ BC = CB$ [Common]
$\therefore\ \triangle\text{ABC}\cong\triangle\text{DCB}$ [By $SSS$]
$\Rightarrow\ \angle\text{BAC}=\angle\text{CDB}$ $[C.P.C.T.]$
Thus, BC subtends equal angles, $\angle\text{BAC}$ and $\angle\text{CDB}$ on the same side of it.
$\therefore$ Points $A, B, C, D$ are concyclic.
Then $D$ is the required point $BD$ and $CD$.
In $\triangle\text{ABC}$ and $\triangle\text{DCB}$
$AB = DC\ AC = DB\ BC = CB$ [Common]
$\therefore\ \triangle\text{ABC}\cong\triangle\text{DCB}$ [By $SSS$]
$\Rightarrow\ \angle\text{BAC}=\angle\text{CDB}$ $[C.P.C.T.]$
Thus, BC subtends equal angles, $\angle\text{BAC}$ and $\angle\text{CDB}$ on the same side of it.
$\therefore$ Points $A, B, C, D$ are concyclic.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
The following data gives the demand estimates of the Government of India, Department of Electronics for the personnel in the Computer sector during the Eighth Plan period $(1990–95):$
Represent the data with the help of a bar graph. Indicate with the help of the bar graph the course where the estimated requirement is least.
→|
Qualifications
|
$MCA ($Masters in Computer Applications$)$
|
$DCA ($Diploma in Computer Applications$)$
|
$DCE ($Diploma in Computer Engineering$)$
|
$CL ($Certificate Level Course$)$
|
$ST ($Short Term Course$)$
|
|
Personnel required
|
$40600$
|
$181600$
|
$18600$
|
$670600$
|
$1802900$
|
Students of a school staged a rally for cleanliness campaign. They walked through the lanes in two groups. One group walked through the lanes $A B, B C$ and $C A$; while other through $A C, C D$ and $D A$ (See in a given figure). Then they cleaned the area enclosed within their lanes. If $A B=9 m, B C=40 m, C D=15 m, DA =28 m$, and $\angle B=$ $90^{\circ}$, which group cleaned more area and by how much? Find the total area cleaned by the students (neglecting the width of the lanes).

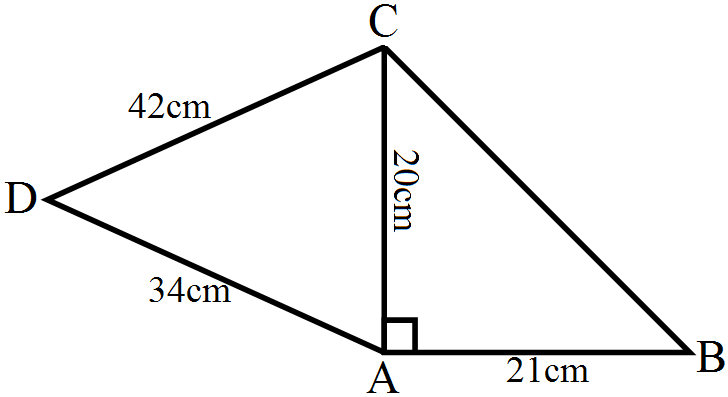

→Find the perimeter and area of a qudrilateral $ABCD$ in which $AB = 21\ cm$,$\angle\text{BAC}=90^\circ,$ $AC = 20\ cm, CD = 42\ cm,$ and $AD = 34\ cm.$
