Question
Give four differences between an electromagnet and a permanent magnet.
✓
Answer

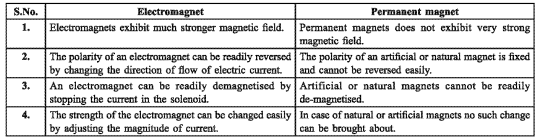

Differences between an Electromagnet and a Permanent Magnet
