Question
Given below are some famous numbers associated with electromagnetic radiations in different contexts in physics. State the part of the electromagnetic spectrum to which each belongs.
  1. 21 cm (wavelength emitted by atomic hydrogen in interstellar space).
  2. 1057 MHz (frequency of radiation arising from two close energy levels in hydrogen; known as Lamb shift).
  3. 2.7 K [temperature associated with the isotropic radiation filling all space-thought to be a relic of the ‘big-bang’ origin of the universe].
  4. 5890 Å - 5896 Å [double lines of sodium]
  5. 14.4 keV [energy of a particular transition in 57Fe nucleus associated with a famous high resolution spectroscopic method (Mössbauer spectroscopy)].
✓

Answer

  1. Radio waves; it belongs to the short wavelength end of the electromagnetic spectrum.
  2. Radio waves; it belongs to the short wavelength end.
  3. Temperature, T = 2.7 °K

$\lambda_\text{m}$ is given by Planck's law as:

$\lambda_\text{m}=\frac{0.29}{2.7}=0.11 \ \text{cm}$

This wavelength corresponds to microwaves.

  1. This is the yellow light of the visible spectrum.
  2. Transition energy is given by the relation,

E = hv

Where,

h = Planck's constant = 6.6 × 10-34 Js

v = Frequency of radiation

Energy, E = 14.4 K eV

$\therefore \ \text{v}=\frac{\text{E}}{\text{h}}$

$=\frac{14.4\times10^3\times1.6\times10^{-19}}{6.6\times10{-34}}$

= 3.4 × 1018 Hz

This corresponds to X-rays.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "Long Answer Type Questions [5M]" from Electromagnetic Waves→Electromagnetic Waves — all question types→Physics STD 12 Science question papers→Bihar Board STD 12 Science question papers→Bihar Board question paper generator→

Similar questions

How would you set up a circuit to obtain NOT gate using a transistor?
→
A diverging lens of focal length 20cm and a converging lens of focal length 30cm are placed 15cm apart with their principal axes coinciding. Where should an object be placed on the principal axis so that its image is formed at infinity?
→
A mica strip and a polysterene strip are fitted on the two slits of a double slit apparatus. The thickness of the strips is 0.50mm and the separation between the slits is 0.12cm. The refractive index of mica and polysterene are 1.58 and 1.55 respectively for the light of wavelength 590nm which is used in the experiment. The interference is observed on a screen a distance one meter away.
  1. What would be the fringe-width?
  2. At what distance from the centre will the first maximum be located?
→
A wire of length l is bent in the form of an equilateral triangle and carries an electric currrent i.
  1. Find the magnetic field B at the centre.
  2. If the wire is bent in the form of a square, what would be the value of B at the centre?
→
Find the circuit in the three resistors shown in the figure.

→

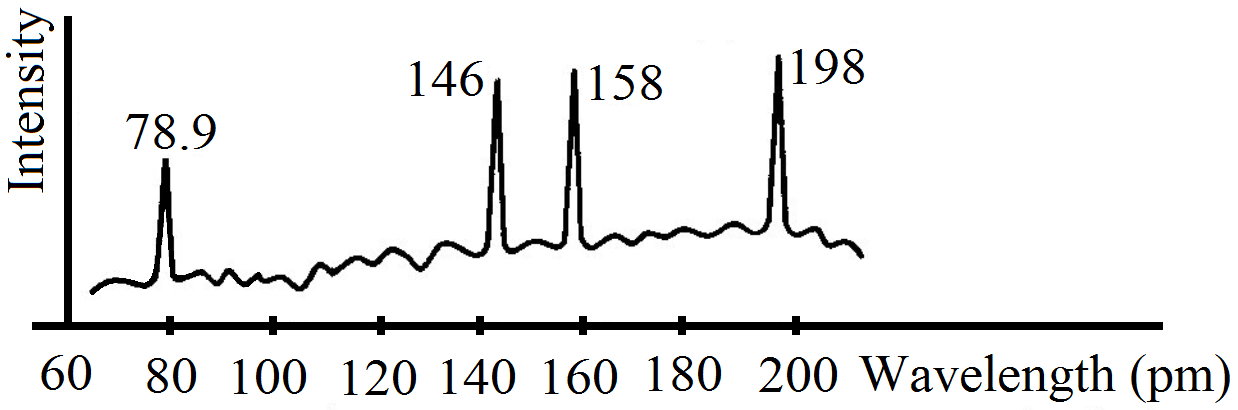

Continuous X-rays are made to strike a tissue paper soaked with polluted water. The incoming X-rays excite the atoms of the sample by knocking out the electrons from the inner shells. Characteristic X-rays are analysed and the intensity is plotted against the wavelength. Assuming that only $\text{K}_\alpha$ intensities are detected, list the elements present in the sample from the plot. Use Moseley's equation v - (25 × 1014Hz)(Z - 1)2.

→
The wavelength of sodium light in air is 589nm.
  1. Find its frequency in air.
  2. Find its wavelength in water (refractive index = 1.33).
  3. Find its frequency in water.
  4. Find its speed in water.
→

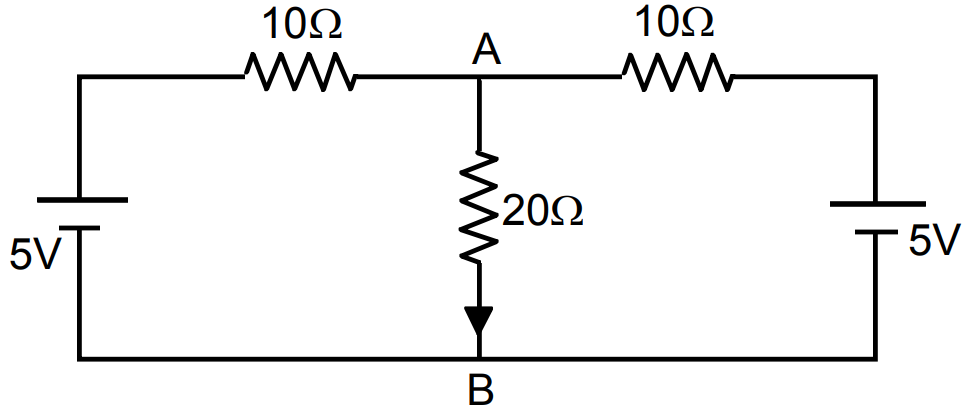

(a) Find the current in the $20\Omega$ resistor shown in the figure. (b) If a capacitor of capacitance $4\mu\text{F}$ is joined between the points A and B, what would be the electrostatic energy stored in it in steady state?

→
