11. thermodynamics — Physics STD 11 Science — Question

Rajasthan BoardEnglish MediumSTD 11 SciencePhysics11. thermodynamics1 Mark
MCQ
Given below are two statements:

Statement $I:$ If heat is added to a system, its temperature must increase.

Statement $II:$ If positive work is done by a system in a thermodynamic process, its volume must increase.

In the light of the above statements, choose the correct answer from the options given below

  • A
    Statement $I$ is true but Statement $II$ is false
  • B
    Both Statement $I$ and Statement $II$ are true
  • C
    Both Statement $I$ and Statement $II$ are false
  • ✓
    Statement $I$ is false but Statement $II$ is true
✓

Answer

Correct option: D.
Statement $I$ is false but Statement $II$ is true
d
Statement $I:$ $\Delta Q > 0$

According to $1^{\text {st }}$ law of thermodynamics

$\Delta Q =\Delta U + W$

If $\Delta Q > 0, \Delta U < 0$ and $W > 0$ is also possible.

Hence $\Delta T < 0$, so $T$ decreases.

Statement $I$ is false

Statement $II:$ W $ > 0$

$\therefore \int Pdv > 0$

Therefore volume of system must increase during positive work done by the system.

Statement $II$ is true

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q (1 Marks)" from 11. thermodynamics→11. thermodynamics — all question types→Physics STD 11 Science question papers→Rajasthan Board STD 11 Science question papers→Rajasthan Board question paper generator→

Similar questions

A point source of light is placed at a distance, of 2f from a converging lens of focal length f. The intensity on the other side of the lens is maximum at a distance:
  1. f
  2. between f and 2
  3. 2f
  4. more than 2f.
→
If a particle of mass $m$ is moving with constant velocity $v$ parallel to $X-$axis in $x-y$ plane as shown in fig. Its angular momentum with respect to origin at any time $t$ will be
→
An engine takes in $5$ moles of air at $20\,^{\circ} C$ and $1$ $atm,$ and compresses it adiabaticaly to $1 / 10^{\text {th }}$ of the original volume. Assuming air to be a diatomic ideal gas made up of rigid molecules, the change in its internal energy during this process comes out to be $X\, kJ$. The value of $X$ to the nearest integer is
→
Specific heat capacity depends on:
→
A force of $6.4\  N$ stretches a vertical spring by $0.1\ m$. The mass that must be suspended  from the spring so that it oscillates with a time period of $\pi/4\  second$ is .... $kg$
→
The correct value of ${0^o}C$ on the Kelvin scale is ........... $K$
→

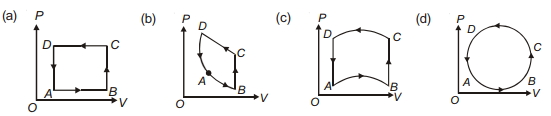

In following figures $(a)$ to $(d)$, variation of volume by change of pressure is shown in figure. The gas is taken along the path $A B C D A$. Change in internal energy of the gas will be .......
→
