Question
How did de Broglie hypothesis lead to Bohr’s quantum condition of atomic orbits?
✓
Answer
According to Bohr’s quantum condition “Only those atomic orbits are allowed as stationary orbits in which angular momentum of an electron is the integral multiple of $\frac{\text{h}}{2\pi}."$ If m is the mass, v velocity and r radius of orbit, then angular momentum of electron L = mvr. According to Bohr’s quantum condition, $\text{mvr}=\text{n}\frac{\text{h}}{2\pi}\dots(\text{i})$ According to de Broglie quantum condition only those atomic orbits are allowed as stationary orbits in which circumference of electron-orbit is the integral multiple of de Broglie wavelength associated with electron, i.e., $2\pi\text{r}=\text{n}\lambda\dots(\text{ii})$ According to de Broglie hypothesis, $\lambda=\frac{\text{h}}{\text{mv}}\dots(\text{iii})$ Substituting this value in (ii), we get $2\pi\text{r}=\text{n}\Big(\frac{\text{h}}{\text{mv}}\Big)\Rightarrow\ \text{mvr}=\text{n}\frac{\text{h}}{2\pi}$This is Bohr's quantum condition.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Three rods of lengths $20\ cm$ each and area of cross section $1\ cm^2$ are joined to form a triangle $ABC$. The conductivities of the rods are $\text{K}_\text{AB}=50\text{Js}^{-1}\text{m}^{-1}{^{\circ}}\text{C}^{-1},\ \text{K}_\text{BC}=200\text{Js}^{-1}\text{m}^{-1}{^{\circ}}\text{C}^{-1}$ and $\text{K}_\text{AC}=400\text{Js}^{-1}\text{m}^{-1}{^{\circ}\text{C}}^{-1}.$ The junctions $A, B$ and $C$ are maintained at $40^\circ C, 80^\circ C$ and $80^\circ C$ respectively. Find the rate of heat flowing through the rods $AB, AC$ and $BC$.
→A square loop of side $12\ cm$ with its sides parallel to $X$ and $Y$ axes is moved with a velocity of $8\ cms^{–1}$ in the positive $x-$ direction in an environment containing a magnetic field in the positive $z-$ direction. The field is neither uniform in space nor constant in time. It has a gradient of $10^{–3}T \ cm^{–1}$ along the negative $x-$ direction $($that is it increases by $10^{–3}T \ cm^{–1}$ as one moves in the negative $x-$ direction$),$ and it is decreasing in time at the rate of $10 ^{–3}T s^{–1}$. Determine the direction and magnitude of the induced current in the loop if its resistance is $4.50 m\Omega$ .
→A neutron moving with a speed υ strikes a hydrogen atom in ground state moving towards it with the same speed. Find the minimum speed of the neutron for which inelastic $($completely or partially$)$ collision may take place. The mass of neutron $=$ mass of hydrogen $= 1.67 \times 10^{-27}kg.$
→A capacitor having a capacitance of $100\mu\text{F}$ is charged to a potential difference of 24V. The charging battery is disconnected and the capacitor is connected to another battery of emf 12V with the positive plate of the capacitor joined with the positive terminal of the battery:
→- Find the charges on the capacitor before and after the reconnection.
- Find the charge flown through the 12V battery.
- Is work done by the battery or is it done on the battery? Find its magnitude.
- Find the decrease in electrostatic field energy.
- Find the heat developed during the flow of charge after reconnection.

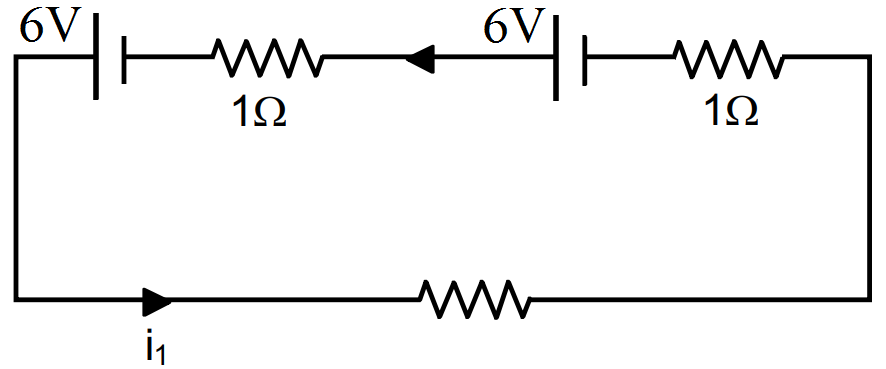

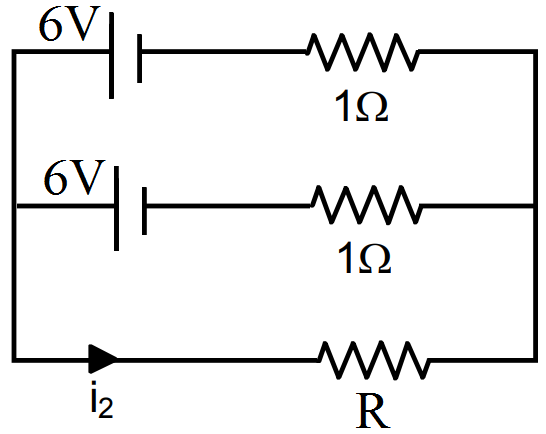

Find the value of $\frac{\text{i}_1}{\text{i}_2}$ in the figure. if (a) $\text{R}=0.1\Omega$ (b) $\text{R}=1\Omega$ and (c) $\text{R}=10\Omega.$ Note from your answers that in order to get more current from a combination of two batteries, they should be joined in parallel if the external resistance is small and in series if the external resistance is large, compared to the internal resistance.
→What is an ammeter? How can we convert any galvanometer into an ammeter of given range? Explain.###Describe briefly that how and when any galvanometer is converted into an ammeter?
The magnetic field in the cylindrical region shown in figure increases at a constant rate of $20.0mT/s$. Each side of the square loop abcd and defa has a length of $1.00cm$ and a resistance of $4.00\Omega.$ Find the current $($magnitude and sense$)$ in the wire ad if:
→If the resistance $R_1$ is increased $($Fig.$),$ how will the readings of the ammeter and voltmeter change?
→A device 'X' is connected to an a.c source. The variation of voltage, current and power in one complete cycle is shown in Fig.
- Which curve shows power consumption over a full cycle?
- What is the average power consumption over a cycle?
- Identify the device 'X'.
A uniform magnetic field B exist in a region. An electron projected perpendicular to the field goes in a circle. Assuming Bohr's quantization rule for angular momentum, calculate (a) the smallest possible radius of the electron (b) the radius of the nth orbit and (c) the minimum possible speed of the electron.
