MCQ

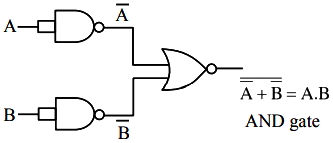

Identify the logic operation carried out.
- A$NAND$
- B$NOR$
- C$OR$
- ✓$AND$
✓
Answer
Correct option: D.
$AND$
d
