MCQ
If $A , B, C$ are three points on a circle with centre $O$ such that $\angle\text{AOB} = 90^\circ$ and $\angle\text{BOC} = 120^\circ,$ then $\angle\text{ABC} =$
- A$60^\circ $
- ✓$75^\circ$
- C$90^\circ$
- D$135^\circ$
✓
Answer
Correct option: B.
$75^\circ$
$\angle\text{AOC}=\angle\text{AOB}+\angle\text{BOC}$
$=90^\circ+120^\circ=210^\circ$
$\angle\text{COA}=360^\circ-210^\circ=150^\circ$
If arc $\widehat{\text{COA}}$ makes $150^\circ$ at centre, then it will make half angle of the centre at circumference.
$\Rightarrow\angle\text{CBA}$ or $\angle\text{ABC}=\frac{150^\circ}{2}=75^\circ$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
On plotting points $O(0, 0), A(3, 0), B(3, 4), C(0, 4)$ and joining $OA, AB, BC$, and $CO$ Which of the following figure is obtained?
→Which of the following is an irrational number$?$

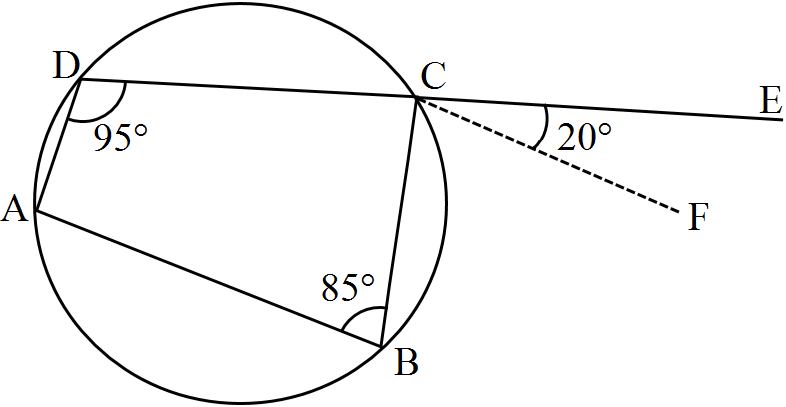

→In the given figure, $ABCD$ is a cyclic quadrilateral in which $DC$ is produced to $E$ and $CF$ is drawn parallel to $AB$ such that $\angle\text{ADC}=95^\circ$ and $\angle\text{ECF}=20^\circ.$ Then, $\angle\text{BAD}=?$
→Which of the following is not a measure of central tendency?
The distance between the graphs of the equations $y = -1$ and $y = 3$ is:
→The sides of a triangular field are $325m, 300m$ and $125m.$ Its area is:

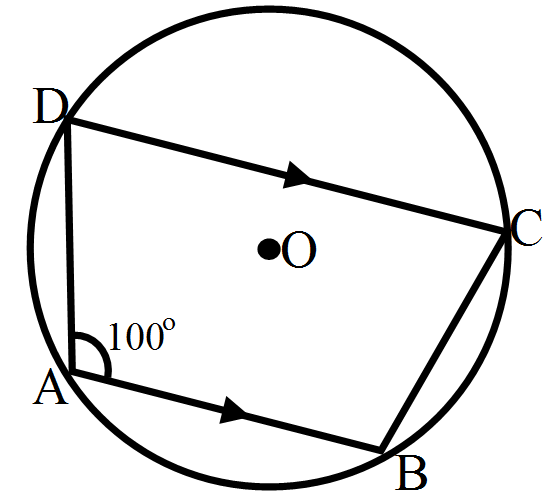

→In the given figure $ABCD$ is a cyclic quadrilateral in which $AB || DC$ and $\angle\text{BAD}=100^\circ.$ Then, $\angle\text{ABC}=?$
