6. system of particles and rotational motion — Physics STD 11 Science — Question

Gujarat BoardEnglish MediumSTD 11 SciencePhysics6. system of particles and rotational motion1 Mark
MCQ

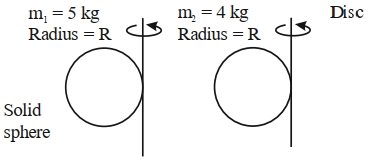

If a solid sphere of mass $5\,kg$ and a disc of mass $4\,kg$ have the same radius. Then the ratio of moment of inertia of the disc about a tangent in its plane to the moment of inertia of the sphere about its tangent will be $\frac{x}{7}$. The value of $x$ is $.........$
  • A
    $4$
  • ✓
    $5$
  • C
    $3$
  • D
    $2$
✓

Answer

Correct option: B.
$5$
b
$I _1=\frac{2}{5} m _1 R ^2+ m _1 R ^2$

$I _1= m _1 R ^2\left(\frac{7}{5}\right)$

$I _1=7 R ^2$

$I _2=\frac{ m _2 R ^2}{4}+ m _2 R ^2$

$I _2=\frac{5}{4} m _2 R ^2$

$I _2=5 R ^2$

$\frac{ I _2}{ I _1}=\frac{5}{7}$

$x =5$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q (1 Marks)" from 6. system of particles and rotational motion→6. system of particles and rotational motion — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

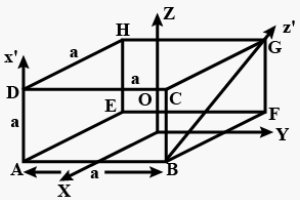

With reference to of a cube of edge a and mass $m,$ state whether the following are true or false. $(O$ is the centre of the cube.$)$
