Question

In a double slit interference experiment, the separation between the slits is 1.0mm, the wavelength of light used is 5.0 × 10^-7m and the distance of the screen from the slits is 1.0m.

Find the distance of the centre of the first minimum from the centre of the central maximum.
How many bright fringes are formed in one centimeter width on the screen?

✓

Answer

Given that, d = 1mm = 10^-3m, D = 1m.
So, fringe with $=\frac{\text{D}\lambda}{\text{d}}=0.5\text{mm}.$

So, distance of centre of first minimum from centre of central maximum $=\frac{0.5}{2}\text{mm}=0.25\text{mm}$
No. of fringes $\frac{10}{0.5}=20.$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "2 Marks Questions" from Wave Optics→Wave Optics — all question types→Physics STD 12 Science question papers→Gujarat Board STD 12 Science question papers→Gujarat Board question paper generator→

Similar questions

Given a uniform electric field$\overrightarrow{\text{E}}$: 4 x 10³ $\hat{i}$ N/C, find the flux of this field through a square of 5cm on a side whose plane is parallel to the y-z plane. What would be the flux through the same square if the plane makes a $30^{\circ}$ angle with the x-axis?

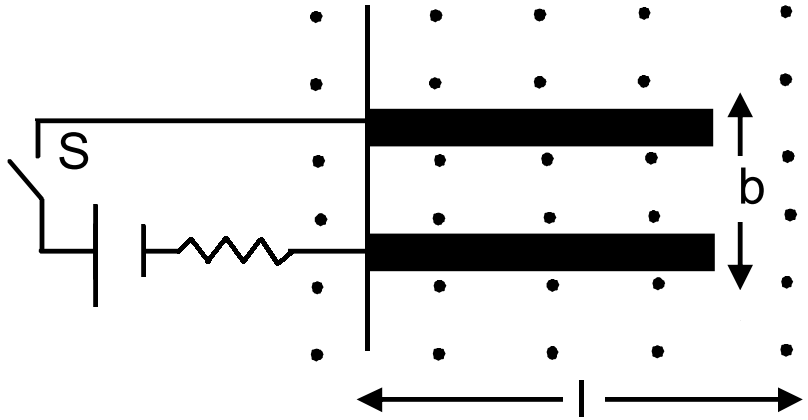

Two metal strips, each of length l, are clamped parallel to each other on a horizontal floor with a separation b between them. A wire of mass m lies on them perpendicularly, as shown in A vertically-upward magnetic field of strength B exists in the space. The metal strips are smooth but the coefficient of friction between the wire and the floor is $\mu.$ A current i is established when the switch S is closed at the instant t = 0. Discuss the motion of the wire after the switch is closed. How far away from the strips will the wire reach?

Given a uniform electric field$\overrightarrow{\text{E}}$: 5 x 10³ $\hat{i}$ N/C, find the flux of this field through a square of l0 cm on a side whose plane is parallel to the y-z plane. What would be the flux through the same square if the plane makes a 30⁰ angle with the x-axis?

A telescope has been adjusted for relaxed eye. You are asked to adjust it for least distance of distinct vision, then how will you change the distance between two lenses?

The charge on a parallel plate capacitor varies as $\text{q}=\text{q}_0\cos2\pi\text{vt}$. The plates are very large and close together (area = A, separation = d). Neglecting the edge effects, find the displacement current through the capacitor?

Each of the batteries shown in figure has an emf equal to 5V. Show that the magnetic field B at the point P is zero for any set of values of the resistances.

When light travels from an optically denser medium to a rarer medium, why does the critical angle of incidence depend on the color of the light?

The electric foree between two electric charges in a medium is F . The distance between them is $d$. At what distance were they placed from each other
so that the electric foree becomes (i) 3 F (ii) $\frac{ F }{4}$ ?

Obtain the expression for the magnetic energy stored in a solenoid in terms of magnetic field B , area A and length $l$ of the solenoid and hence obtain formula for magnetic energy per unit volume.

The distance of the field point, on the equatorial plane of a small electric dipole is halved. By what factor does the electric field due to the dipole change?
