Question
In a $\triangle\text{ABC,D}\ \text{and E}$ are points on the sides AB and AC respectively such that DE || BC.
If AD = 6cm, DB = 9cm and AE = 8cm, find AC.
If AD = 6cm, DB = 9cm and AE = 8cm, find AC.
✓
Answer
We have,DE || BC
therefore, by basic proportionally theorem,
We have $\frac{\text{AD}}{\text{DB}}=\frac{\text{AE}}{\text{EC}}$
$\Rightarrow\frac{6}{9}=\frac{8}{\text{EC}}$
$\Rightarrow\frac{2}{3}=\frac{8}{\text{EC}}$
$\Rightarrow\text{EC}=\frac{8\times3}{2}$
$\Rightarrow\text{EC}=12\text{cm}$
$\Rightarrow\text{Now, AC}=\text{AE}+\text{EC}=8+12=20\text{cm}$
$\therefore\text{AC}=20\text{cm}$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions

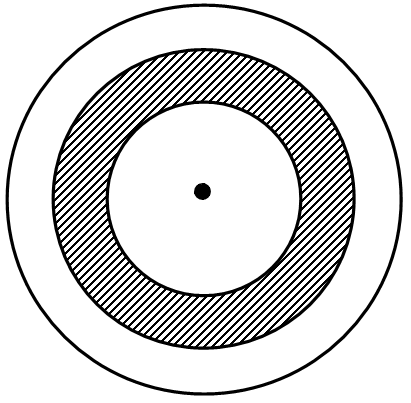

An archery target has three regions formed by the concentric circles as shown in the figure. If the diameters of the concentric circles are in the ratio 1:2:3, then find the ratio of the areas of three regions.
