P-2 Circle — Maths STD 10 — Question

Maharashtra BoardEnglish MediumSTD 10MathsP-2 Circle4 Marks
Question
In figure 3.102, two circles intersect each other at points A and E. Their common secant through E intersects the circles at points B and D. The tangents of the circles at points Band D intersect each other at point C.
Prove that $\square$ABCD is cyclic.
✓

Answer

We join A to B and A to D and A to E

As BC is a tangent at B, we have
∠ CBD = ∠BAE ………….(1)
As CD is a tangent at D, we have
∠ CDB = ∠DAE ………….(2)
In ΔBCD, we have
⇒ ∠CBD + ∠CDB + ∠ BCD = 180° (Sum of all angles of a triangle)
⇒ ∠BAE + ∠DAE + ∠BCD = 180° (From (1) and (2))
⇒ ∠BAD + ∠BCD = 180° (∠BAE + ∠DAE = ∠BAD)
In quadrilateral ABCD,
We have ∠A + ∠C = 180° (Proved above)
⇒ ∠A + ∠B + ∠C + ∠D = 360°
⇒ ∠B + ∠D + 180 = 360
⇒ ∠B + ∠D = 180
Therefore, opposite angles of the quadrilateral sum to 180. Hence ABCD is a cyclic quadrilateral.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "4 Marks Questions" from P-2 Circle→P-2 Circle — all question types→Maths STD 10 question papers→Maharashtra Board STD 10 question papers→Maharashtra Board question paper generator→

Similar questions

Find the probability that a number selected at random from the numbers 1, 2, 3, ....., 35 is a:
  1. Prime number.
  2. Multiple of 7.
  3. A multiple of 3 or 5.
→
If $\sin\theta=\frac{3}{5},$ evaluate $\frac{\cos\theta-\frac{1}{\tan\theta}}{2\cot\theta}.$
→
If the mean of the following distribution is 27, find the value of p.
Class
0-10
10-20
20-30
30-40
40-50
Frequency
8
p
12
13
10
→
Solve for x and y:
$x + y = a + b,$
$ax - by = a^2 - b^2$
→
In the figure, $OQ:PQ = 3:4$ and perimeter of $\triangle\text{POQ}$ = 60cm. Determine $PQ, QR$ and $OP.$
→
If the mean of the following data is 20.6. Find the value of p.
x 10 15 p 25 35
y 3 10 25 7 5
→

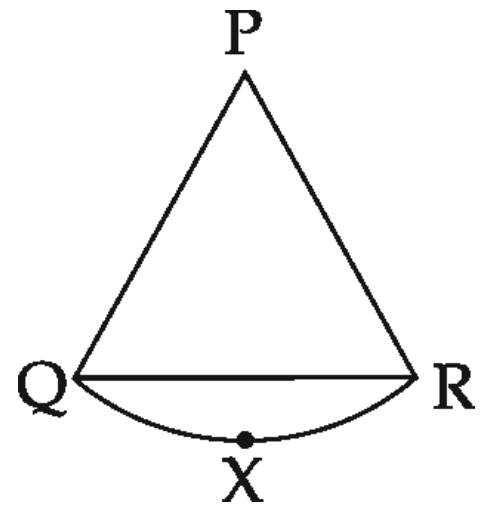

In the adjoining figure, $P$ is the centre of the circle with radius $18 \ cm$. If the area of the $\Delta{PQR}$ is $100 \ cm^2$. Find the central angle $QPR$.
→
