In figure shows a rectangular block with dimensions $x,\, 2x$ and $4x$. Electrical contacts can be made to the block between opposite pairs of faces (for example, between the faces labelled $A-A, B-B$ and $C-C$). Between which two faces would the maximum electrical resistance be obtained ($A-A$ : Top and bottom faces, $B-B$ : Left and right faces, $C-C$ : Front and rear faces)

A
$A-A$
B
$B-B$
✓
$C-C$
D
Same for all three pairs

✓

Answer

Correct option: C.

$C-C$

c
Let $\rho $ is the resistivity of the material

Resistance for contact $A-A$

${R_{AA}} = \rho \frac{x}{{2x \times 4x}} = \frac{\rho }{{8x}}$

Similar for contacts $B-B$ and $C-C$ are respectively

${R_{BB}} = \rho .\frac{{2x}}{{x \times 4x}} = \frac{\rho }{{2x}} = \frac{{4\rho }}{{8x}}$
and ${R_{CC}} = \rho \frac{{4x}}{{x \times 2x}} = \frac{{2\rho }}{x} = \frac{{16\rho }}{{8x}}$

It is clear maximum resistance will be for contact $C-C$.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

JEE STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

White light may be considered to be a mixture of waves with $\lambda$ ranging between $4000 Å, 4667 Å, 5600 Å, 7000 Å, 3900 Å$ and $ 7800 Å$. An oil film of thickness $10,000 Å$ is examined normally by reflected light. If $\mu = 1.4$, then the film appears bright for

In a series $L-C$ circuit, if $L=10^{-3} \,H$ and $C=3 \times 10^{-7} \,F$ is connected to a $100 \,V -50 \,Hz$ a.c. source, the impedance of the circuit is ...........

A mass spectrometer is a device which select particle of equal mass. An iron with electric charge $q > 0$ and mass $m$ starts at rest from a source $S$ and is accelerated through a potential difference $V$. It passes $\rho$ through a hole into a region of constant magnetic field $\vec B\,$ perpendicular to the plane of the paper as shown in the figure. The particle is deflected by the magnetic field and emerges through the bottom hole at a distance $d$ from the top hole. The mass of the particle is

A perfect gas contained in a cylinder is kept in vacuum. If the cylinder suddenly bursts, then the temperature of the gas

If block $A$ is moving with an acceleration of $5\,m/s^2$, the acceleration of $B$ w.r.t. ground is

The horizontal component of the earth’s magnetic field at a place is $3 × 10^{-4} T$ and the dip is . A metal rod of length $0.25\, m$ placed in the north-south position and is moved at a constant speed of $10\, cm/s$ towards the east. The emf induced in the rod will be......$ \mu V$

An observer is moving with half the speed of light towards a stationary microwave source emitting waves at frequency $10\ GHz$. What is the frequency of the microwave measured by the observer?.......$GHz$ ( speed of light $= 3 \times 10^8 $ $ms^{-1}$)

A smooth sphere $A$ of mass $m$ collides elastically with an identical sphere $B$ at rest. The velocity of $A$ before collision is $8\ m/s$ in a direction making $60^o$ with the line of centres at the time of impact.

$(i)$ The sphere $A$ comes to rest after collision.

$(ii)$ The sphere $B$ will move with a speed of $8\ m/s$ after collision.

$(iii)$ The directions of motion $A$ and $B$ after collision are at right angles.

$(iv)$ The speed of $B$ after collision is $4\ m/s$ . The correct option is

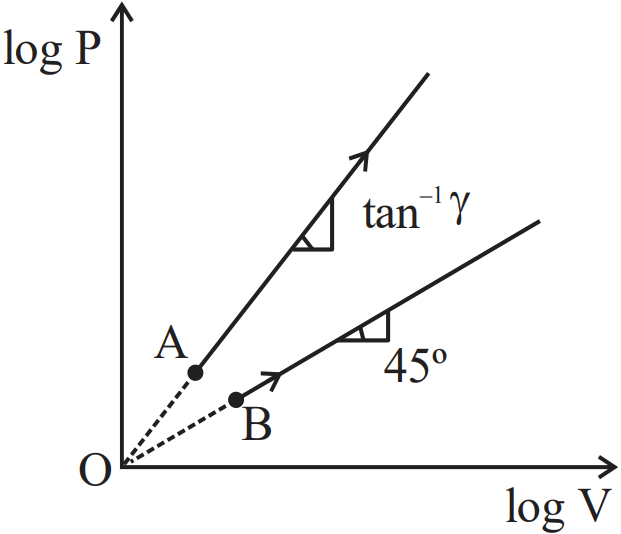

Two thermodynamical process are shown in the figure. The molar heat capacity for process $A$ and $B$ are $C _{ A }$ and $C _{ B }$. The molar heat capacity at constant pressure and constant volume are represented by $C _{ P }$ and $C _{ V }$, respectively. Choose the correct statement.
