Lines and Angles — Maths STD 9 — Question

Gujarat BoardEnglish MediumSTD 9MathsLines and Angles1 Mark
MCQ
In the adjoining figure, $AB \| CD$ and $AB \| EF$. If $\text{EA}\bot\text{BA}$ and $\angle\text{BEF}=55^\circ,$ then the values of $x, y$ and $z:$
  • A
    $35^\circ , 125^\circ , 120^\circ$
  • ✓
    $125^\circ , 125^\circ , 35^\circ$
  • C
    $60^\circ , 60^\circ , 60^\circ$
  • D
    $120^\circ , 130^\circ , 25^\circ$
✓

Answer

Correct option: B.
$125^\circ , 125^\circ , 35^\circ$
$x + 55 = 180^\circ $ (Sum of supplementary angles or co-interior angles)$x = 125^\circ$
$x = y = 125^\circ $ (Corresponding angles)
$\text{z}+\angle\text{EAB}=\text{y} $ (Exterior angle property)
$z = 125^\circ - 90^\circ = 35^\circ .$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q" from Lines and Angles→Lines and Angles — all question types→Maths STD 9 question papers→Gujarat Board STD 9 question papers→Gujarat Board question paper generator→

Similar questions

The perpendicular distance of the point $P(-2, -3)$ from the $y-$axis is:
→
The smallest rational number by which $\frac{1}{3}$ should be multiplied so that its decimal expansion terminates after one place of decimal, is:
→
$\sqrt[3]{2}\times\sqrt[4]{2}\times\sqrt[12]{32}=?$
→
Write the correct answer in the following: Boundaries of surfaces are:
→
In fig, if $AD = BC$ and $\angle\text{BAD} = \angle\text{ABC},$ then $\angle\text{ACB}$ is equal to:
→
The lengths of the three sides of a triangular are $30\ cm, 24\ cm$ and $18\ cm$ respectively. The length of the altitude of the triangle corresponding to the smallest side is:
→

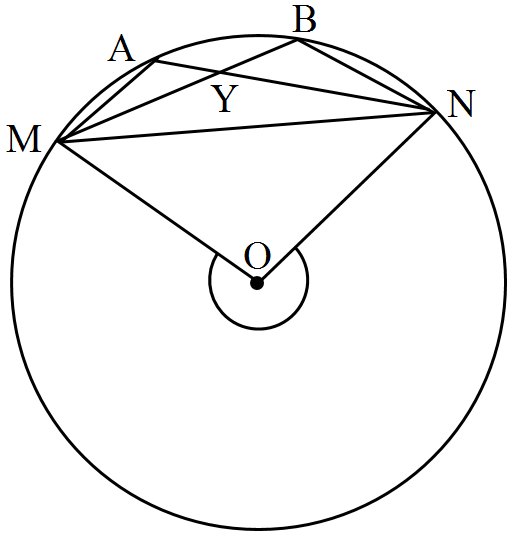

In the given figure, $M, A, B$ and $N$ are points on a circle having centre $O. \ AN$ and $MB$ cut at $Y.$ If $\angle\text{NYB}=50^\circ$ and $\angle\text{YNB}=20^\circ,$ then reflex $\angle\text{MON}$ is equal to:
→
The square root of the expression $\frac{1}{a b c}\left(a^2+b^2+c^2\right)+2\left(\frac{1}{a}+\frac{1}{b}+\frac{1}{c}\right)$ is
→
In the given, $\text{AB}$ is side of regular five sided polygon and $\text{AC}$ is a side of a regular six sided polygon inscribed in the circle with centre $\text{O . AO}$ and $\text{CB}$ intersect at $P$ , then $\angle A P B$ is equal to
→
Number of circles that can be drawn through three non-collinear points is:
→
