Q: In the circuit as shown in figure the

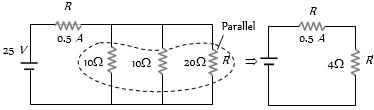

d $\frac{1}{{R'}} = \frac{1}{{10}} + \frac{1}{{10}} + \frac{1}{{20}}$$ \Rightarrow R' = \frac{{20}}{5} = 4\;\Omega $ Now using ohm’s law $i = \frac{{25}}{{R + R'}}$$ \Rightarrow 0.5 = \frac{{25}}{{R + 4}}$ $ \Rightarrow R + 4 = \frac{{25}}{{0.5}} = 50$ $ \Rightarrow R = 50 - 4 = 46\;\Omega $ Current through $20\,\Omega $ resistor $ = \frac{{0.5 \times 5}}{{20 + 5}} = \frac{{2.5}}{{25}} = 0.1\,A$ Potential difference across middle resistor $=$ Potential difference across $20\,\Omega $$ = 20 \times 0.1 = 2\,V$

SECTION - A [PHYSICS MCQ]

GSEB - English Medium

In the circuit as shown in figure the

AResistance $R = 46 \,\Omega$
BCurrent through $20\,\Omega$ resistance is $0.1 \,A$
CPotential difference across the middle resistance is $2\, V$
D
All option are correct

Medium

STD 11 Science
JEE
STD 12 - 3. current electricity
Physics

Download our app
and get started for free

Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*

Download App

Similar Questions

1
Two resistances ${R_1}$ and ${R_2}$ are joined as shown in the figure to two batteries of $e.m.f.$ ${E_1}$ and ${E_2}$. If ${E_2}$ is short-circuited, the current through ${R_1}$ is
View Solution
2
In the circuit shown in figure, the current drawn from the battery is $4\,A$. If $10 \,\Omega$ resistor is replaced by $20\,\Omega$ resistor, then current drawn from the circuit will be .............. $A$
View Solution
3
The internal resistance of a cell is the resistance of
View Solution
4
If the current through a resistor in a circuit increases by $3 \%$, then the power dissipated by the resistor
View Solution
5

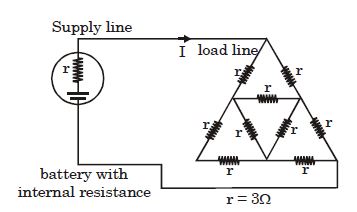

By which of the following single load resistance the load bridge should be replaced so that the power to the load remains unchanged ................ $\Omega$
