MCQ
In the circuit shown in figure the maximum output voltage $V_0$ is....$ V$
- A$0$
- ✓$5 $
- C$10$
- D$\frac{5}{{\sqrt 2 }}$
✓
Answer
Correct option: B.
$5 $
b

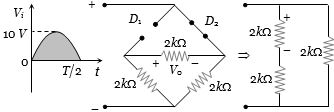

(b)For the positive half cycle of input the resulting network is shown below
==>$(V_0)max =$$\frac{1}{2}{({V_i})_{\max }} = \frac{1}{2} \times 10 = 5\,V.$
(b)For the positive half cycle of input the resulting network is shown below
==>$(V_0)max =$$\frac{1}{2}{({V_i})_{\max }} = \frac{1}{2} \times 10 = 5\,V.$
