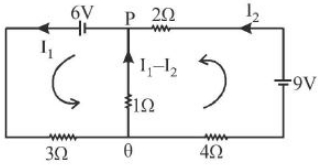

In the circuit shown, the current in the $1\,\Omega$ resistor is
  • A$0 $ $A$
  • B$0.13\ A$, from $Q$ to $P$
  • C$0.13\ A$, from $P$ to $Q$
  • D$1.3\ A$, from $P$ to $Q$
JEE MAIN 2015,AIPMT 1988, Medium
