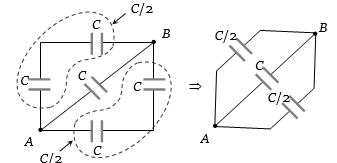

In the figure shown, the effective capacitance between the points $A$ and $B$, if each has capacitance $C$, is
