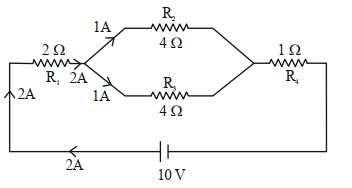

In the given circuit, the current in resistance $\mathrm{R}_3 $ is :
- ✓$1 \mathrm{~A}$
- B$1.5 \mathrm{~A}$
- C$2 \mathrm{~A}$
- D$2.5 \mathrm{~A}$
✓
Answer
Correct option: A.
$1 \mathrm{~A}$
a
$\mathrm{R}_{\mathrm{eq}}=2 \Omega+2 \Omega+1 \Omega=5 \Omega$
$\mathrm{R}_{\mathrm{eq}}=2 \Omega+2 \Omega+1 \Omega=5 \Omega$
$\mathrm{i}=\frac{\mathrm{V}}{\mathrm{R}_{\mathrm{eq}}}=\frac{10}{5}=2 \mathrm{~A}$
Current in resistance $\mathrm{R}_3=2 \times\left(\frac{4}{4+4}\right)$
$ =2 \times \frac{4}{8} $
$ =1 \mathrm{~A}$
