MCQ
In the given figure, $AB \| CD$. If $\angle\text{BAO}=60^\circ$ and $\angle\text{OCD}=110^\circ$ then $\angle\text{AOC}=?$
- A$70^\circ$
- B$60^\circ$
- ✓$50^\circ$
- D$40^\circ$
✓
Answer
Correct option: C.
$50^\circ$
Let $\angle\text{AOC}=\text{x}^\circ$
Draw $YOZ \| CD \| AB.$
Now, $YO\| AB$ and $OA$ is the transversal.
$\Rightarrow\angle\text{YOA}=\angle\text{OAB}=60^\circ$ (alternate angles)
Again, $OZ \| CD$ and $OC$ is the transversal.
$\Rightarrow\angle\text{COZ}+\angle\text{OCD}=180^\circ$ (interior angles)
$\Rightarrow\angle\text{COZ}+110^\circ=180^\circ$
$\Rightarrow\angle\text{COZ}=70^\circ$
Now, $\angle\text{YOZ}=180^\circ$ (straight angle)
$\Rightarrow\angle\text{YOA}+\angle\text{AOC}+\angle\text{COZ}=180^\circ$
$\Rightarrow60^\circ+\text{x}+70^\circ=1806^\circ$
$\Rightarrow\text{x}=50^\circ$
$\Rightarrow\angle\text{AOC}=50^\circ$
Draw $YOZ \| CD \| AB.$
Now, $YO\| AB$ and $OA$ is the transversal.
$\Rightarrow\angle\text{YOA}=\angle\text{OAB}=60^\circ$ (alternate angles)
Again, $OZ \| CD$ and $OC$ is the transversal.
$\Rightarrow\angle\text{COZ}+\angle\text{OCD}=180^\circ$ (interior angles)
$\Rightarrow\angle\text{COZ}+110^\circ=180^\circ$
$\Rightarrow\angle\text{COZ}=70^\circ$
Now, $\angle\text{YOZ}=180^\circ$ (straight angle)
$\Rightarrow\angle\text{YOA}+\angle\text{AOC}+\angle\text{COZ}=180^\circ$
$\Rightarrow60^\circ+\text{x}+70^\circ=1806^\circ$
$\Rightarrow\text{x}=50^\circ$
$\Rightarrow\angle\text{AOC}=50^\circ$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
In the which quadrant does the point $(-7, -4)$ lie?
→If $f(x)=x^{100}+2 x^{99}+k$ is divisible by $(x+1)$, then the value of $k$ is
→An irrational number between $s$ and $6$ is:
→Which of the following is a polynomial?
In the following, write the correct answer. In $\triangle\text{ABC}$ if $AB = AC$ and $\angle\text{B}=50^{\circ}$ then is equal to:
→$AB$ and $CD$ are two equal chords of a circle with centre $O$ such that $\angle\text{AOB}=80^\circ$ then $\angle\text{COD}=?$
→The slant height of a cone is increased by $10\%.$ If the radius remains the same, the curved surface area is increased by.
→If two acute angles of a right triangle are equal, then each acute is equal to:

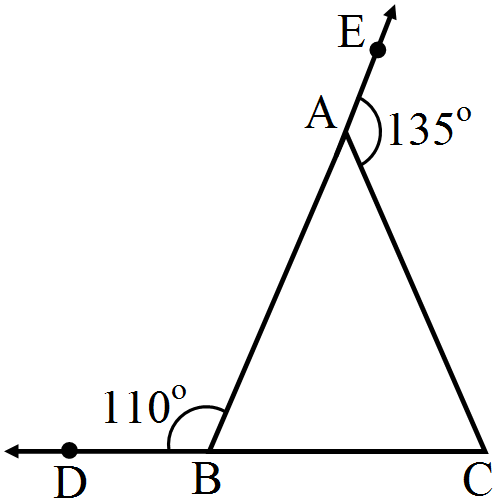

In the given figure, the side $CB$ and $BA$ of $\triangle\text{ABC}$ have been produced to $D$ and $E$ respectively such that $\angle\text{ABD}=110^\circ$ and $\angle\text{CAE}=135^\circ.$ Then, $\angle\text{ACB}=?$
