Question
In the given figure, ABCD is a cyclic quadrilateral in which AE is drawn parallel to CD, and BA is produced. If $\angle\text{ABC}=92^\circ$ and $\angle\text{FAE}=20^\circ,$ find $\angle\text{BCD}.$
✓
Answer
Given: ABCD is a cyclic quadrilateral.
Then $\angle\text{ABC}+\angle\text{ADC}=180^\circ$
$\Rightarrow\ 92^\circ+\angle\text{ADC}=180^\circ$
$\Rightarrow\ \angle\text{ADC}=(180^\circ-92^\circ)=88^\circ$
Again, AE parallel to CD.
Thus, $\angle\text{EAD}=\angle\text{ADC}=88^\circ$ [Alternate angles]
We know that the exterior angle of a cyclic quadrilateral is equal to the interior opposite angle.
$\therefore\ \angle\text{BCD}=\angle\text{DAF}$
$\Rightarrow\ \angle\text{BCD}=\angle\text{EAD}+\angle\text{EAF}$
$=88^\circ+20^\circ=108^\circ$
Hence, $\angle\text{BCD}=108^\circ$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
In the given figure, O is the centre of the circle and $\angle\text{BCO}=30^\circ.$ Find x and y.
→The table given below shows the ages of 75 teachers in a school.
A teacher from this school is chosen at random. What is the probability that the selected teacher is:
|
Age (in years)
|
18 - 29
|
30 - 39
|
40 - 49
|
50 - 59
|
|
Number of teachers
|
3
|
27
|
37
|
8
|
- 40 or more than 40 years old?
- Of an age lying between 30 - 39 years (including both)?
- 18 years or more and 49 years or less?
- 18 years or more old?
- Above 60 years of age?
If the mean of the following data is $8,$ find the value of $p.$
→| $x$ | $3$ | $5$ | $7$ | $9$ | $11$ | $13$ |
| $f$ | $6$ | $8$ | $15$ | $p$ | $8$ | $4$ |
In the adjoining figure, ABCD is a || gm in which E and F are the midpoints of AB and CDrespectively. If GH is a line segment that cuts AD, EF and BC at G, P and H respectively, prove that GP = PH.
The radius of the base and the height of a cylinder are in the ratio $2 : 3.$ If its volume is $1617\ cm^3,$ find the total surface area of the cylinder.
→Show that the quadrilateral formed by joining the midpoints of the pairs of adjacent sides of a rectangle is a rhombus.
Give a geometrical construction for finding the fourth point lying on a circle passing through three given points, without finding the centre of the circle. Justify the construction.

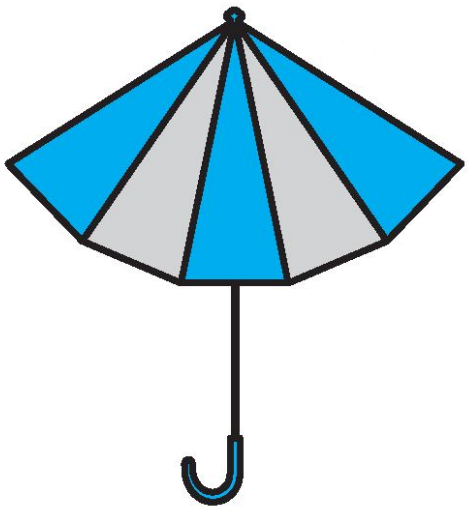

An umbrella is made by stitching $12$ triangular pieces of cloth, each measuring $(50\ cm \times 20\ cm \times 50\ cm).$ Find the area of the cloth used in it.
