MCQ
In the given figure, $\angle\text{OAB}=110^\circ$ and $\angle\text{BCD}=130^\circ$ then $\angle\text{ABC}$ is equal to:
- A$40^\circ$
- B$50^\circ$
- ✓$60^\circ$
- D$70^\circ$
✓
Answer
Correct option: C.
$60^\circ$
Through $B$ draw $\text{YBZ}\ \| OA \| CD$.
Now, $OA \| YB$ and $AB$ is the transversal.
$\Rightarrow\angle\text{OAB}+\angle\text{YBA}=180^\circ \ ($interior angles are supplementary$)$
$\Rightarrow\angle\text{YBA}=70^\circ$
Also, $CD \| BZ$ and $BC$ is the transversal.
$\Rightarrow\angle\text{DCB}+\angle\text{CBZ}=180^\circ\ ($interior angles are supplementary$)$
Now, $OA \| YB$ and $AB$ is the transversal.
$\Rightarrow\angle\text{OAB}+\angle\text{YBA}=180^\circ \ ($interior angles are supplementary$)$
$\Rightarrow\angle\text{YBA}=70^\circ$
Also, $CD \| BZ$ and $BC$ is the transversal.
$\Rightarrow\angle\text{DCB}+\angle\text{CBZ}=180^\circ\ ($interior angles are supplementary$)$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
If $\text{a}^{\frac{1}{3}}+\text{b}^{\frac{1}{3}}+\text{c}^{\frac{1}{3}}= 0,$ then:
→In figure, if $l_1|| l_2$, what is $x + y$ in terms of $w$ and $z$?
→The figure formed by joining the mid $-$ points of the adjacent sides of a quadrilateral is a:
→The graph of the linear equation $2x - y = 4$ cuts $x-$ axis at:
→Three angles of a quadrilateral are $80^{\circ}, 95^{\circ}$ and $112^{\circ}$. Its fourth angle is:
→The sides of a triangle are $16\ cm, 30\ cm, 34\ cm$. Its area is:
→An exterior angle of a triangle is equal to $100^\circ$ and two interrior opposite angles are equal. Each of these angles is equal to:
→If the altitudes from two vertices of a triangle to the opposite sides are equal, then the triangle is:

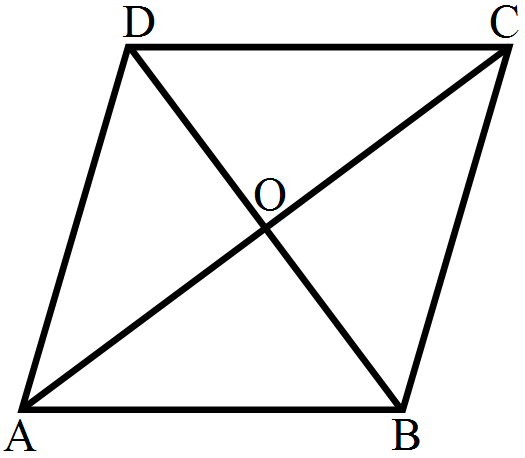

In the given figure, $\ce{ABCD}$ is a rhombus. Then:
