In the given figure, BA || ED and BC || EF. Show that + =180^ . - Vidyadip

Question

In the given figure, $BA || ED$ and $BC || EF$. Show that $\angle\text{ABC}+\angle\text{DEF}=180^\circ.$

✓

Answer

Construction: Produce $ED$ to meet $BC$ at $Z$.

Now, $AB || EZ$ and $BC$ is the transversal.
$\Rightarrow\angle\text{ABZ}+\angle\text{EZB}=180^\circ$ (interior angles)
$\Rightarrow\angle\text{ABC}+\angle\text{EZB}=180^\circ\ .....(\text{i)}$
Also, $EF || BC$ and $EZ$ is the transversal.
$\Rightarrow\angle\text{BZE}=\angle\text{ZEF}$ (alternate angles)
$\Rightarrow\text{BZE}=\angle\text{DEF}\ .....(\text{ii)}$ From $(i)$ and $(ii)$,
we have $\angle\text{ABC}+\angle\text{DEF}=180^\circ$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "4 Marks Questions" from Lines and Triangles→Lines and Triangles — all question types→Maths STD 9 question papers→Gujarat Board STD 9 question papers→Gujarat Board question paper generator→

Similar questions

A child playing with building blocks, which are of the shape of the cubes, has built a structure as shown in Figure. If the edge of each cube is $3\ cm$, find the volume of the structure built by the child.

Find the area of a parallelogram $ABCD$ in which $AB = 28\ cm, BC = 26\ cm$ and diagonal $AC = 30\ cm$.

Find the weight of a solid cylinder of radius $10.5\ cm$ and height $60\ cm$ if the material of the cylinder weighs $5$ g per $cm ^3$.

Find rational numbers $a$ and $b$ such that: $\frac{5+2\sqrt{3}}{7+4\sqrt{3}}=\text{a}+\text{b}\sqrt{3}$

Draw a circle with centere at point $O$. Draw its two chords $AB$ and $CD$ such that $AB$ is not parallel to $CD$. Draw the perpendicular bisectors of $AB$ and $CD$. At what point do they intersect?

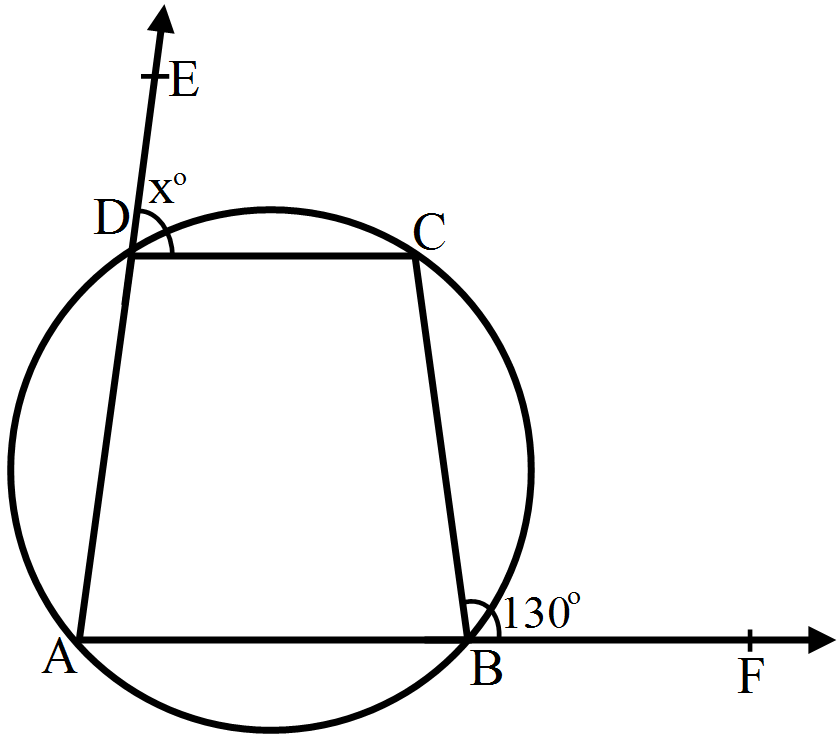

In the given figure, sides AD and AB of cyclic quadrilateral ABCD are produced to E and Frespectively. If $\angle\text{CBF}=130^\circ$ and $\angle\text{CDE}=\text{x}^\circ,$ find the value of x.

→

In parallelogram ABCD, two points P and Q are taken on diagonal BD such that DP = BQ Show that:

$\triangle\text{APD}\cong\triangle\text{CQB}$
AP = CQ
$\triangle\text{AQD}\cong\triangle\text{CPB}$
APCQ is a parallelogram.

→

The mean of $24$ number is $35$. If $3$ is added to each number, what will be the new mean?

In ABCD is a parallelogram in which P is the mid-points of DC and Q is a point on AC such that $\text{CQ}=\frac{1}{4}\text{AC}.$ if PQ produced meets BC at E, prove R is a mid-points of BC.

→

Find the missing frequency $(p)$ for the following distribution whose mean is $7.68$

x:	$3$	$5$	$7$	$9$	$11$	$13$
f:	$6$	$8$	$15$	$p$	$8$	$4$
