Question
Obtain the relation between surface energy and surface tension.
✓
Answer
The relation between surface tension and surface energy:

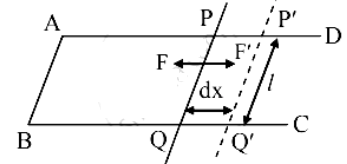

i.Let ABCD be a rectangular frame of wire, fitted with a movable arm PQ.
ii.The frame held in a horizontal position is dipped into a soap solution and taken out so that a soap film APQB is formed. Due to the surface tension of the soap solution, a force ‘F’ will act on each arm of the frame. Under the action of this force, the movable arm PQ moves towards AB.
iii.The magnitude of force due to surface tension is, F = 2Tl .....(∵ T = F/l)
(A factor of 2 appears because soap film has two surfaces that are in contact with a wire.)
iv.Let the wire PQ be pulled outwards through a small distance ‘dx’ to the position P′Q′, by applying an external force F′ isothermally, which is equal and opposite to F. Work done by this force, dW = F′dx = 2Tldx.
v.But, 2ldx = dA = increase in the area of two surfaces of the film.
∴ dW = T dA
vi.This work done in stretching the film is stored in the area dA in the form of potential energy (surface energy).
∴ Surface energy, E = T dA
\(\therefore \frac{E}{d A}=T\)
Hence, surface tension = surface energy per unit area.
vii.Thus, surface tension is equal to the mechanical work done per unit surface area of the liquid, which is also called surface energy.
i.Let ABCD be a rectangular frame of wire, fitted with a movable arm PQ.
ii.The frame held in a horizontal position is dipped into a soap solution and taken out so that a soap film APQB is formed. Due to the surface tension of the soap solution, a force ‘F’ will act on each arm of the frame. Under the action of this force, the movable arm PQ moves towards AB.
iii.The magnitude of force due to surface tension is, F = 2Tl .....(∵ T = F/l)
(A factor of 2 appears because soap film has two surfaces that are in contact with a wire.)
iv.Let the wire PQ be pulled outwards through a small distance ‘dx’ to the position P′Q′, by applying an external force F′ isothermally, which is equal and opposite to F. Work done by this force, dW = F′dx = 2Tldx.
v.But, 2ldx = dA = increase in the area of two surfaces of the film.
∴ dW = T dA
vi.This work done in stretching the film is stored in the area dA in the form of potential energy (surface energy).
∴ Surface energy, E = T dA
\(\therefore \frac{E}{d A}=T\)
Hence, surface tension = surface energy per unit area.
vii.Thus, surface tension is equal to the mechanical work done per unit surface area of the liquid, which is also called surface energy.
