Kinetic Theory — Physics STD 11 Science — Question

Gujarat BoardEnglish MediumSTD 11 SciencePhysicsKinetic Theory4 Marks
Question
On a winter day, the outside temperature is 0°C and relative humidity 40%. The air from outside comes into a room and is heated to 20°C. What is the relative humidity in the room? The saturation vapour pressure at 0°C is 4.6mm of mercury and at 20°C it is 18mm of mercury.
✓

Answer

Relative humidity = 40% SVP = 4.6mm of Hg$0.4=\frac{\text{VP}}{4.6}\Rightarrow\text{VP}=0.4\times4.6=1.84$
$\frac{\text{P}_1\text{V}}{\text{T}_1}=\frac{\text{P}_2\text{V}}{\text{T}_2}\Rightarrow\frac{1.84}{273}=\frac{\text{P}_2}{293}$
$\Rightarrow\text{P}_2=\frac{1.84}{273}\times293$
Relative humidity at 20°C$=\frac{\text{VP}}{\text{SVP}}=\frac{1.84\times293}{273\times10}=0.109=10.9\%$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "Case study (4 Marks)" from Kinetic Theory→Kinetic Theory — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

The plate current in a triode value is maximum when the potential of the grid is:
  1. Positive.
  2. Zero.
  3. Negative.
  4. Non-positive.
→
Clockwork refers to the inner workings of mechanical clock or watch (where it is known as "movement") and different types of toys which work using a series of gears driven by a spring. Clockwork device is completely mechanical and its essential parts are:
- A key (or crown) which you wind to add energy
- A spiral spring in which the energy is stored
- A set of gears through which the spring's energy is released. The gears control how quickly (or slowly) a clockwork machine can do things. Such as in mechanical clock/watch the mechanism is the set of hands that sweep around the dial to tell the time. In a clockwork car toy, the gears drive the wheels.
Winding the clockwork with the key means tightening a sturdy metal spring, called the mainspring. It is the process of storing potential energy. Clockwork springs are usually twists of thick steel, so tightening them (forcing the spring to occupy a much smaller space) is actually quite hard work. With each turn of the key, fingers do work and potential energy is stored in the spring. The amount of energy stored depends on the size and tension of the spring. Harder a spring is to turn and longer it is wound, the more energy it stores.
While the spring uncoils, the potential energy is converted into kinetic energy through gears, cams, cranks and shafts which allow wheels to move faster or slower. In an ancient clock, gears transform the speed of a rotating shaft so that it drives the second hand at one speed, the minute hand at $\frac{1}{60}$ of that speed, and the hour hand at $\frac{1}{3600}$ of that speed. Clockwork toy cars often use gears to make themselves race along at surprising speed.

1. What is the meaning of movement of old age mechanical clocks?
(a) The pendulum of the clock
(b) The gears which move the hands of the clock
(c) A spring and combination of gears which move the hands of the clock
(d) The hands of the clock
2. What type of energy is stored in the spring while winding it?
(a) Potential  (b) Heat  (c) Both kinetic and potential  (d) Kinetic
3. When the spring of a clockwork uncoils
(a) Kinetic energy is converted into potential energy
(b) Potential energy is converted into kinetic
(c) Potential energy is converted into heat, light and sound energy
(d) Kinetic energy is converted into heat, light and sound energy
OR
In clockwork devices, ________ transform the speed of a rotating ________ to drive wheels slower or faster.
(a) Shaft, spring  (b) shaft, gear  (c) Gear, Shaft  (d) Spring, gear
4. More energy is stored in a spring if the
(a) Spring is larger, harder and wound fur a longer time
(b) Spring is smaller, harder and wound for a shorter time
(c) Spring is larger, harder and wound for a

→

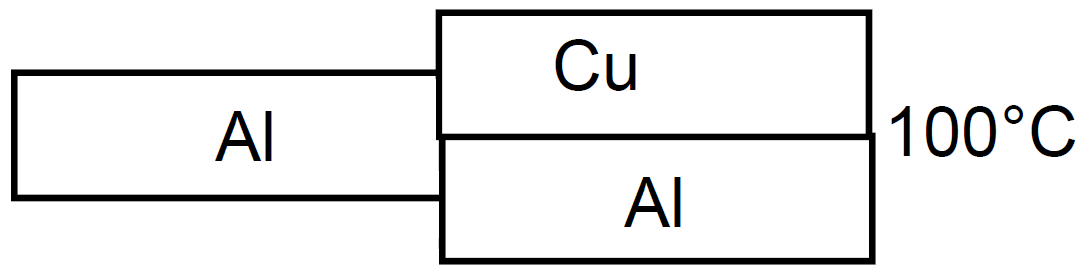

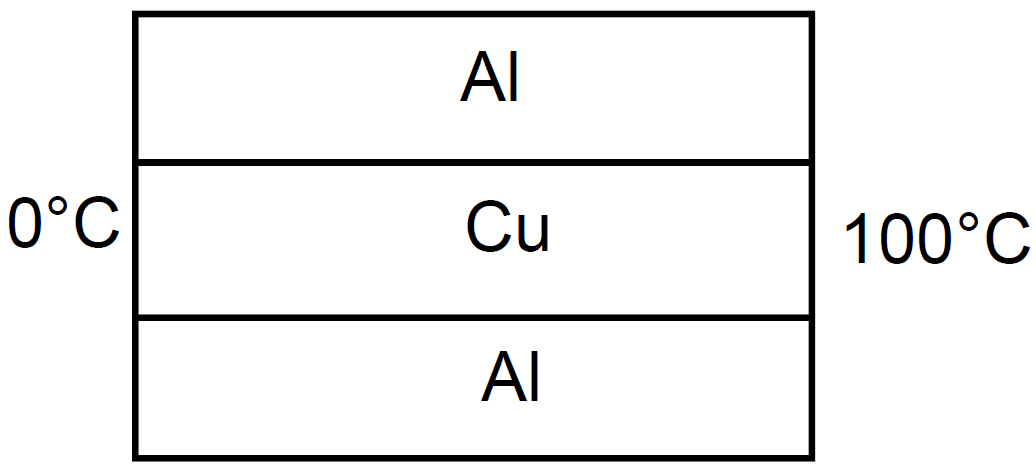

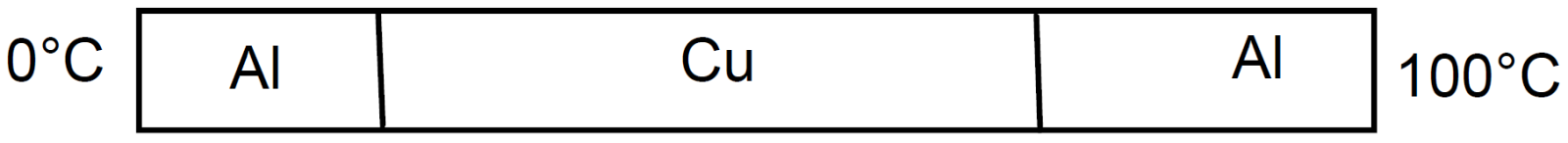

The three rods shown in figure, have identical geometrical dimensions. Heat flows from the hot end at a rate of $40$ Win the arrangement (a) Find the rates of heat flow when the rods are joined as in arrangement (b) and in (c) Thermal conductivities of aluminium and copper are $200Wm^{-1^\circ}C^{-1}$ and $400Wm^{-1^\circ}C^{-1}$ respectively.
  1.
  1.
  1.
→
A triode value operates at $V_p=225 \mathrm{~V}$ and $V_g=-0.5 \mathrm{~V}$. The plate current remains unchanged if the plate voltage is increased to 250 V and the grid voltage is decreased to -2.5 V . Calculate the amplification factor.
→
In one of the exercises to strengthen the wrist and fingers, a person squeezes and releases a soft rubber ball. Is the work done on the ball positive, negative or zero during compression? During expansion?
→
A magnetic dipole of magnetic moment $0.72\sqrt{2}\text{ A-m}^2$ -is placed horizontally with the north pole pointing towards east. Find the position of the neutral point if the horizontal component of the earth's magnetic field is $18\mu\text{T.}$
→
Suppose you are inside the water in a swimming pool near an edge. A friend is standing on the edge. Do you find your friend taller or shorter than his usual height?
→
Read the passage given below and answer the following questions from 1 to 5. Every measurement involves errors. Thus, the result of measurement should be reported in a way that indicates the precision of measurement. Normally, the reported result of measurement is a number that includes all digits in the number that are known reliably plus the first digit that is uncertain. The reliable digits plus the first uncertain digit are known as significant digits or significant figures. If we say the period of oscillation of a simple pendulum is 1.62 s, the digits 1 and 6 are reliable and certain, while the digit 2 is uncertain. Thus, the measured value has three significant figures.A choice of change of different units does not change the number of significant digits or figures in a measurement. This important remark makes most of the following observations clear,
  • All the non-zero digits are significant.
  • All the zeros between two non-zero digits are significant, no matter where the decimal point is, if at all.
  • If the number is less than 1, the zero(s) on the right of decimal point but to the left of the first non-zero digit are not significant.
  • The terminal or trailing zero(s) in a number without a decimal point are not significant.[Thus 123 m = 12300 cm = 123000 mm has three significant figures, the trailing zero(s) being not significant.
  • The trailing zero(s) in a number with a decimal point are significant. [The numbers 3.500 or 0.06900 have four significant figures each]
  • For a number greater than 1, without any decimal, the trailing zero(s) are not significant.
  • For a number with a decimal, the trailing zero(s) are significant
(b) The digit 0 conventionally put on the left of a decimal for a number less than 1 (like 0.1250) is never significant. However, the zeroes at the end of such number are significant in a measurement. (c) The multiplying or dividing factors which are neither rounded numbers nor numbers representing measured values are exact and have infinite number of significant digits. (d) In multiplication or division, the final result should retain as many significant figures as are there in the original number with the least significant figures.In addition or subtraction, the final result should retain as many decimal places as are there in the number with the least decimal places. For example, the sum of the numbers 436.32 g, 227.2 g and 0.301 g by mere arithmetic addition, is 663.821 g. But the least precise measurement (227.2 g) is correct to only one decimal place. The final result should, therefore, be rounded off to 663.8 g.
  1. Significant figures in 12300 cm are:
  1. 5
  2. 4
  3. 3
  4. None of these
  1. All the non-zero digits are:
  1. Significant
  2. Non significant
  3. None of these
  1. Give rules for significant figures
  1. Give rules for addition and subtraction operations with significant figure
  1. Give rules for multiplication and division operations with significant figure
→
A hot body is placed in a closed room maintained at a lower temperature. Is the number of photons in the room increasing?
→
Read the passage given below and answer the following questions from 1 to 5. Satellites in a circular orbits around the earth in the equatorial plane with T = 24 hours are called Geostationary Satellites. Clearly, since the earth rotates with the same period, the satellite would appear fixed from any point on earth. It takes very powerful rockets to throw up a satellite to such large heights above the earth but this has been done in view of the several benefits of much practical application. Weight of an object is the force with which the earth attracts it. We are conscious of our own weight when we stand on a surface, since the surface exerts a force opposite to our weight to keep us at rest. The same principle holds good when we measure the weight of an object by a Spring balance hung from a fixed point e.g. the ceiling. The object would fall down unless it is subject to a force opposite to gravity. This is exactly what the spring exerts on the object. This is because the spring is pulled down a little by the gravitational pull of the object and in turn the spring exerts a force on the object vertically upwards. Now, imagine that the top end of the balance is no longer held fixed to the top ceiling of the room. Both ends of the spring as well as the object move with identical acceleration g. The spring is not stretched and does not exert any upward force on the object which is moving down with acceleration g due to gravity. The reading recorded in the spring balance is zero since the spring is not stretched at all. If the object were a human being, he or she will not feel his weight since there is no upward force on him. Thus, when an object is in free fall, it is weightless and this phenomenon is usually called the phenomenon of weightlessness. In a satellite around the earth, every part and parcel of the satellite has acceleration towards the centre of the earth which is exactly the value of earth’s acceleration due to gravity at that position. Thus in the satellite everything inside it is in a state of free fall. This is just as if we were falling towards the earth from a height. Thus, in a manned satellite, people inside experience no gravity. Gravity for us defines the vertical direction and thus for them there are no horizontal or vertical directions, all directions are the same.
  1. Astronaut experiences weightlessness in space because:
  1. Acceleration due to gravity is zero.
  2. Actual weight of astronaut is zero.
  3. They are going with same acceleration due to gravity.
  4. None of these.
  1. Weighing machine measures:
  1. Mass of the person.
  2. Normal reaction exerted by machine on person.
  3. Both a and b.
  4. None of these.
  1. What is geostationary satellite?
  1. What is weight? How it is measured?
  1. What is weightlessness astronaut in satellite experienced by ?
→
