Question

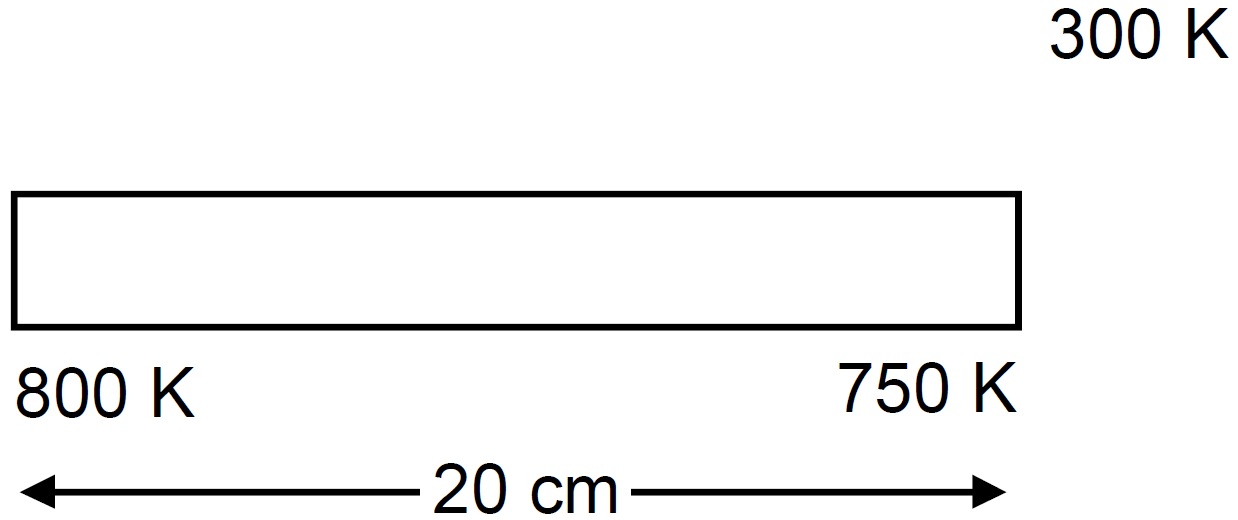

One end of a rod of length 20cm is inserted in a furnace at 800K The sides of the rod are covered with an insulating material and the other end emits radiation like a blackbody. The temperature of this end is 750K in the steady state. The temperature of the surrounding air is 300K. Assuming radiation to be the only important mode of energy transfer between the surrounding and the open end of the rod, find the thermal conductivity of the rod. Stefan constant $\sigma=6.0\times10^{-8}\text{Wm}^{-2}\text{K}^{-4}.$

✓

Answer

$\sigma=6\times10^{-8}\text{w/m}^2\text{-k}^4$
$\text{L}=20\text{cm}=0.2\text{m},\ \text{K}=?$
$\Rightarrow\text{E}=\frac{\text{KA}(\theta_1-\theta_2)}{\text{d}}=\text{A}\sigma\big(\text{T}_1^4-\text{T}_2^4\big)$
$\Rightarrow\text{K}=\frac{\text{s}(\text{T}_1-\text{T}_2)\times\text{d}}{\theta_1-\theta_2}=\frac{6\times10^{-8}\times(750^4-300^4)\times2\times10^{-1}}{50}$
$\Rightarrow\text{K}=73.993\approx74.$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "3 Marks Question" from Heat Transfer.→Heat Transfer. — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

A free atom of iron emits $\text{K}_\alpha$ X-rays of energy 6.4keV. Calculate the recoil kinetic energy of the atom. Mass of an iron atom = $9.3 \times 10^{-26}kg$.

The reading of pressure meter attached to a closed pipe is $3.5 \times 10^5 Nm ^{-2}$. On opening the valve of the pipe, the reading of the pressure meter is reduced to $3.0 \times 10^5 Nm ^{-2}$. Calculate the speed of the water flowing in the pipe.

What is the coefficient of performance $(\beta)$ of a Carnot refrigerator working between 30°C and 0°C?

A uniform circular disc of radius $R$ is rolling on a horizontal surface. Determine the tangential velocity at :

Upper most point.
At centre of mass.
At point of contact.

A woman throws an object of mass $500g$ with a speed of $25m s^1$. If the object hits a wall and rebounds with half the original speed, what is the change in momentum of the object?

A short magnet is moved along the axis of a conducting loop. Show that the loop repels the magnet if the magnet is approaching the loop and attracts the magnet if it is going away from the loop.

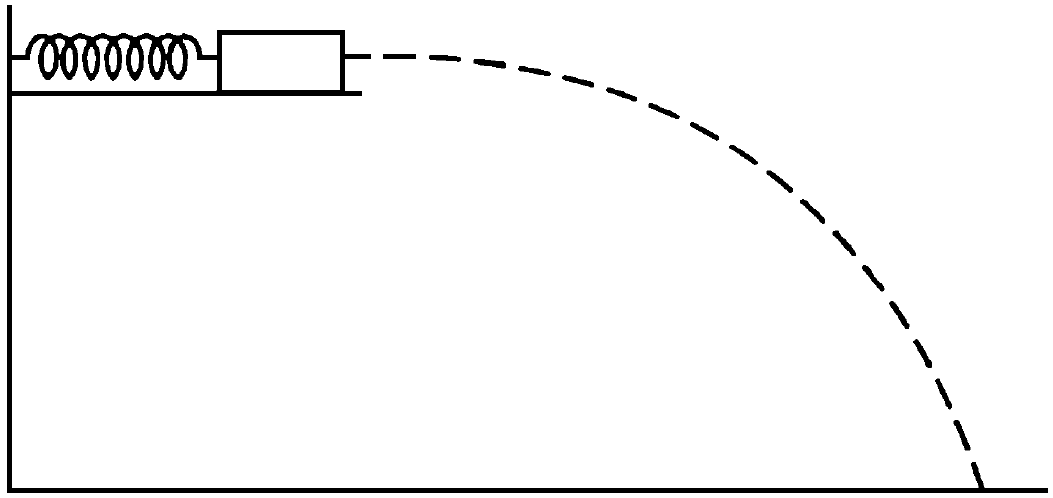

A small block of mass 100g is pressed against a horizontal spring fixed at one end to compress the spring through 5.0cm (figure). The spring constant is 100N/m. When released, the block moves horizontally till it leaves the spring. Where will it hit the ground 2m below the spring?
