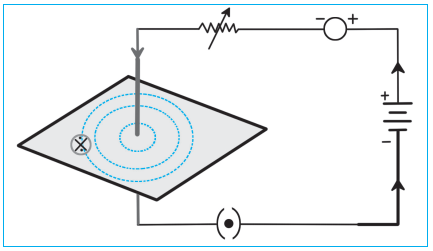

Take a battery, (12V) a variable resistance (or a rheostat), an ammeter (0_5 A), a plug key, needle and a long straight thick copper wire. Take a rectangular cardboard, pass this wire through center. Fix the cardboard and see that it does not slide up or down. Sprinkle iron filings uniformly on the cardboard. Close the key and tap the cardboard gently.

(i) Observe the pattern of iron filings.
(ii) What changes are seen in the magnetic field lines?
(iii) What happens to the magnetic needle of the compass when the compass is brought near the wire, and moved away from the wire? Also observe what happens to the magnetic needle when strength of current is increased.
(iv) What happens to the magnetic needle of the compass when direction of the current is reversed in the straight conductor? State the reasons for your observation.
