Question
Solve graphically that the following system of equation has infinitely many solutions:
x - 2y = 5
3x - 6y = 15
✓
Answer
We have,
x - 2y = 5
3x - 6y = 15
Now, x - 2y = 5
⇒ x = 2y + 5
When y = -1, we have,
x = 2(-1) + 5 = 3
When y= 0, we have,
x = 2 × 0 + 5 = 5
Thus, we have the following table giving points on the line x - 2y = 5
Now, 3x - 6y = 15
⇒ 3x = 15 + 6y
$\Rightarrow\text{x}=\frac{15+6\text{y}}{3}$
When y = -2, we have,
$\text{x}=\frac{15+6(-2)}{3}=1$
When y = -3, we havce,
$\text{x}=\frac{15+6(-3)}{3}=-1$
Thus, we have the following table giving points on the line 3x - 6y = 15

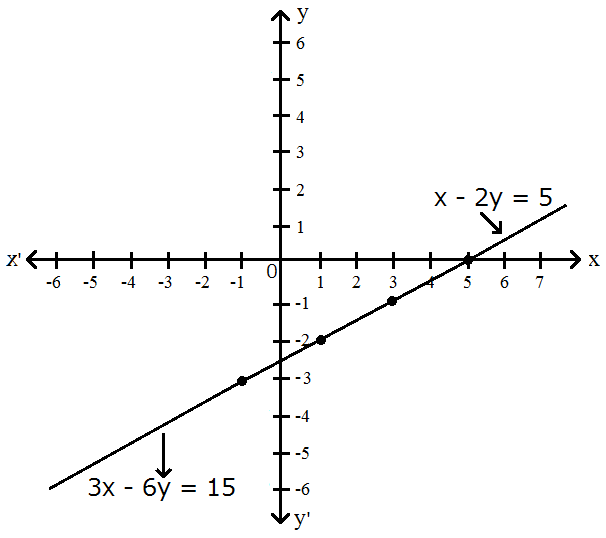

Graph of the given equations,
After plot all points observe that all points on a line so that system of equation has infinite many solution.
x - 2y = 5
3x - 6y = 15
Now, x - 2y = 5
⇒ x = 2y + 5
When y = -1, we have,
x = 2(-1) + 5 = 3
When y= 0, we have,
x = 2 × 0 + 5 = 5
Thus, we have the following table giving points on the line x - 2y = 5
|
x
|
3
|
5
|
|
y
|
1
|
0
|
⇒ 3x = 15 + 6y
$\Rightarrow\text{x}=\frac{15+6\text{y}}{3}$
When y = -2, we have,
$\text{x}=\frac{15+6(-2)}{3}=1$
When y = -3, we havce,
$\text{x}=\frac{15+6(-3)}{3}=-1$
Thus, we have the following table giving points on the line 3x - 6y = 15
|
x
|
1
|
-1
|
|
y
|
-2
|
-3
|
After plot all points observe that all points on a line so that system of equation has infinite many solution.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
In the following data the median of the runs scored by 60 top batsmen of the world in one-day international cricket matches is 5000. Find the missing frequencies x and y.
|
Runs scored
|
2500-3500
|
3500-4500
|
4500-5500
|
5500-6500
|
6500-7500
|
7500-8500
|
|
Number of batsmen
|
5
|
x
|
y
|
12
|
6
|
2
|
The $n^{th}$ term of an AP is (7 - 4n). Find its common difference.

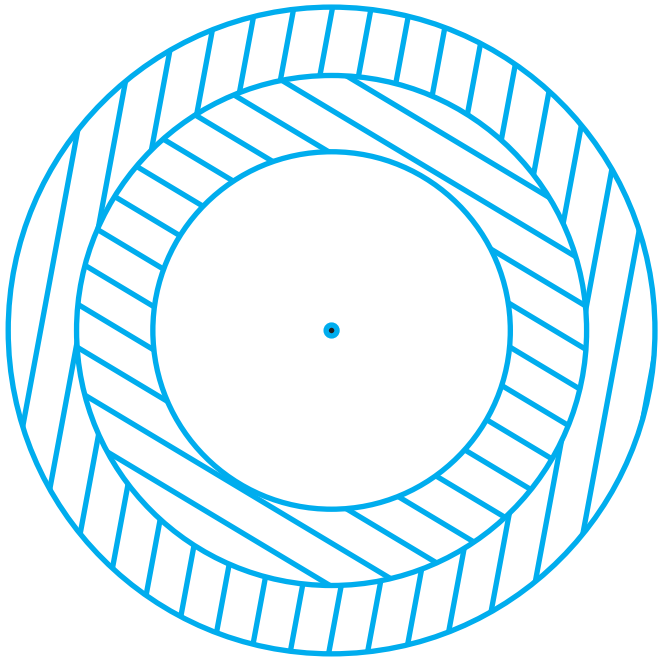

→An archery target has three regions formed by three concentric circles as shown in Fig. If the diameters of the concentric circles are in the ratio 1 : 2 : 3, then find the ratio of the areas of three regions.
