Question
Solve the following simultaneous equation graphically.
x + y = 6; x – y = 4
x + y = 6; x – y = 4
✓
Answer
The given simultaneous equations are
x + y = 6
∴ y = 6 – x
x – y = 4
∴ y = x – 4
The two lines intersect at point (5, 1).
∴ x = 5 and y = 1 is the solution of the simultaneous equations x + y = 6 and x – y = 4.
x + y = 6
∴ y = 6 – x
| x | 0 | 6 | 3 | 4 |
| y | 6 | 0 | 3 | 2 |
| (x, y) | (0, 6) | (6, 0) | (3, 3) | (4, 2) |
∴ y = x – 4
| x | 0 | 4 | 2 | 5 |
| y | -4 | 0 | -2 | 1 |
| (x, y) | (0, -4) | (4, 0) | (2, -2) | (5, 1) |
The two lines intersect at point (5, 1).
∴ x = 5 and y = 1 is the solution of the simultaneous equations x + y = 6 and x – y = 4.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Show that the following points are the vertices of a square:
A(3, 2), B(0, 5), C(-3, 2) and D(0, -1)
A(3, 2), B(0, 5), C(-3, 2) and D(0, -1)
Prove that:
$\Big(\frac{\sin49^\circ}{\cos41^\circ}\Big)^2+\Big(\frac{\cos41^\circ}{\sin49^\circ}\Big)^2=2$
→$\Big(\frac{\sin49^\circ}{\cos41^\circ}\Big)^2+\Big(\frac{\cos41^\circ}{\sin49^\circ}\Big)^2=2$
How many terms are there in the A.P.?
$18, 15\frac{1}{2},13,\ ....,-47$
→$18, 15\frac{1}{2},13,\ ....,-47$

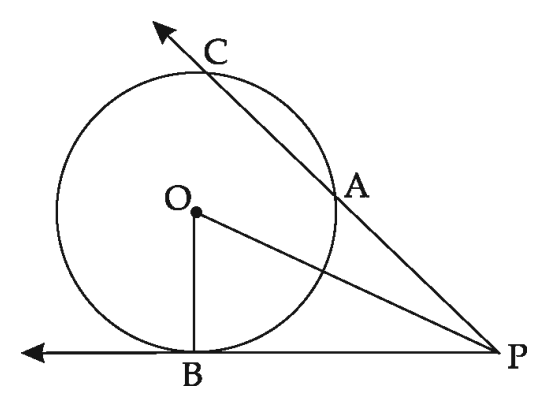

In the adjoining figure, point O is the centre of the circle. Line PB is a tangent and line PAC is a secant. Find PA × PC if OP = 25 and radius is 7.
An oil funnel of tin sheet consists of a cylindrical portion $10\ cm$ long attached to a frustum of a cone. If the total height be $22\ cm$, the diameter of the cylindrical portion $8\ cm$ and the diameter of the top of the funnel $18\ cm,$ find the area of the tin required.
→Solve the following equations by Cramer’s method.
7x + 3y = 15; 12y – 5x = 39
7x + 3y = 15; 12y – 5x = 39
Solve the following quadratic equation by completing the square method.
m2 – 5m = -3
m2 – 5m = -3
A cylindrical container is filled with ice-cream, whose diameter is 12cm and height is 15cm. the whole ice-cream is distributed to 10 children in equal cones having hemispherical tops. If the height of the conical portion is twice the diameter of its base, find the diameter of the ice-cream.
Find the value of k for which the following systems of equations has no solution:
$kx + 3y = k - 3,$
$12x + ky = k$
→→$kx + 3y = k - 3,$
$12x + ky = k$
