MCQ
Standing waves are produced in a $10 \;m$ long stretched string. If the string vibrates in $5$ segments and the wave velocity is $20\; m/s$, the frequency is ... $Hz$
- A$2$
- B$4$
- ✓$5$
- D$10$
✓
Answer
Correct option: C.
$5$
c
(c) String vibrates in five segment so $\frac{5}{2}\lambda = l$
(c) String vibrates in five segment so $\frac{5}{2}\lambda = l$
==> $\lambda = \frac{{2l}}{5}$
Hence $n = \frac{v}{\lambda } = 5 \times \frac{v}{{2l}}$$ = 5 \times \frac{{20}}{{2 \times 10}} = 5$$Hz$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
The motion of a particle as per $x=Asin \omega t + Bcos\omega t$ is :-
→A body is slipping from an inclined plane of height $h$ and length $l$. If the angle of inclination is $\theta $, the time taken by the body to come from the top to the bottom of this inclined plane is
→A constant current of 2.8A exists in a resistor. The rms current is:
In the given arrangement all surfaces are smooth. What acceleration should be given to the system, for which the block $m_2$ doesn't slide down?
→Two non-reactive monoatomic ideal gases have their atomic masses in the ratio $2 : 3$. The ratio of their partial pressures, when enclosed in a vessel kept at a constant temperature, is $4 : 3$. The ratio of their densities is :-
→Range of a bullet fired at $45^o$ to horizontal is $980m$. If the bullet is fired at same angle from a car travelling horizontally at $18\, km/hr$ towards target then range will be increased by :-

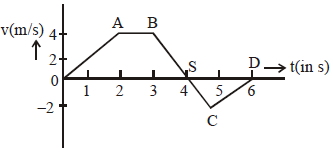

→The velocity $(v)$ and time $(t)$ graph of a body in a straight line motion is shown in the figure. The point $S$ is at $4.333$ seconds. The total distance covered by the body in $6 \;s$ is$.......m$
