Question
Suppose the space between the two inner shells of the previous problem is filled with a dielectric of dielectric coastant K. Find the capacitance of the system between A and B.
✓
Answer
Here we should consider two spherical capacitor of capacitance
cab and cbc in series
$\text{Cab}=\frac{4\pi\in_0\text{abk}}{(\text{b}-\text{a})}$
$\text{Cbc}=\frac{4\pi\in_0\text{bc}}{(\text{c}-\text{b})}$
$\frac{1}{\text{C}}=\frac{1}{\text{Cab}}+\frac{1}{\text{Cbc}}$
$=\frac{(\text{b}-\text{a})}{4\pi\in_0\text{abk}}+\frac{(\text{c}-\text{b})}{4\pi\in_0\text{bc}}$
$=\frac{\text{c}(\text{b}-\text{a})+\text{ka}(\text{c}-\text{b})}{\text{k}4\pi\in_0\text{abc}}$
$\text{C}=\frac{\text{k}4\pi\in_0\text{abc}}{\text{c}(\text{b}-\text{a})+\text{ka}(\text{c}-\text{b})}$
cab and cbc in series
$\text{Cab}=\frac{4\pi\in_0\text{abk}}{(\text{b}-\text{a})}$
$\text{Cbc}=\frac{4\pi\in_0\text{bc}}{(\text{c}-\text{b})}$
$\frac{1}{\text{C}}=\frac{1}{\text{Cab}}+\frac{1}{\text{Cbc}}$
$=\frac{(\text{b}-\text{a})}{4\pi\in_0\text{abk}}+\frac{(\text{c}-\text{b})}{4\pi\in_0\text{bc}}$
$=\frac{\text{c}(\text{b}-\text{a})+\text{ka}(\text{c}-\text{b})}{\text{k}4\pi\in_0\text{abc}}$
$\text{C}=\frac{\text{k}4\pi\in_0\text{abc}}{\text{c}(\text{b}-\text{a})+\text{ka}(\text{c}-\text{b})}$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions

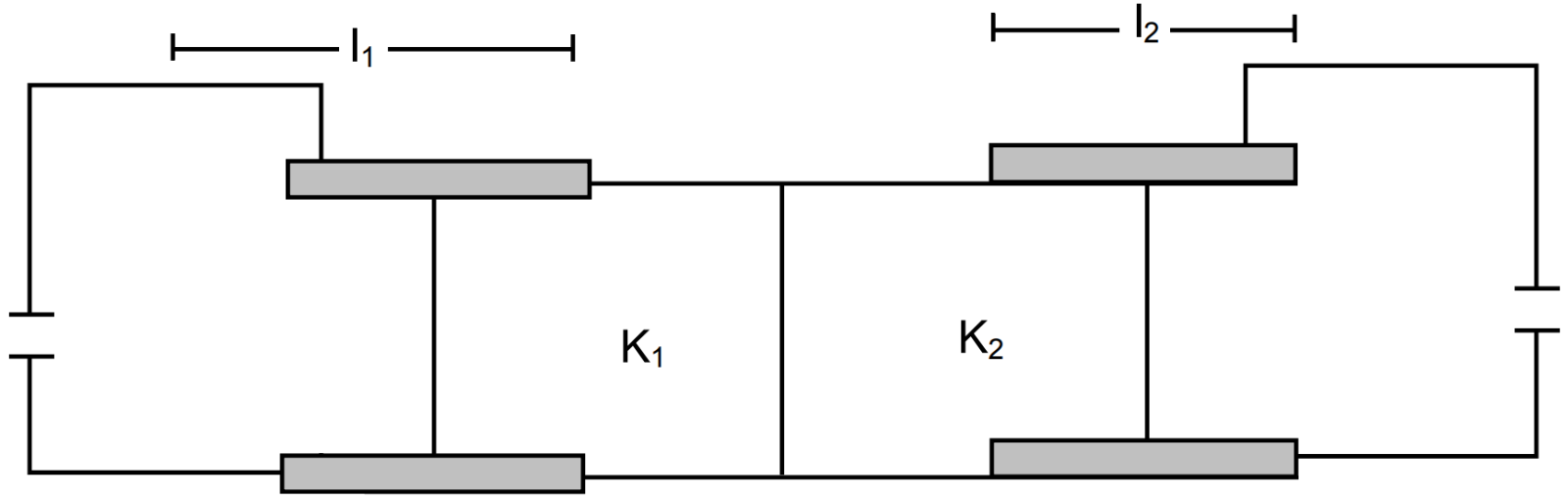

Figure shows two parallel plate capacitors with fixed plates and connected to two batteries. The separation between the plates is the same for the two capacitors. The plates are rectangular in shape with width b and lengths l1 and l2 The left half of the dielectric slab has a dielectric constant K1 and the right half K2. Neglecting any friction, find the ratio of the emf of the left. battery to that of the right battery for which the dielectric slab may remain in equilibrium.
A stone is thrown vertically upward with a speed of 28m/s.
- Find the maximum height reached by the stone.
- Find its velocity one second before it reaches the maximum height.
- Does the answer of part.
- Change if the initial speed is more than 28m/s suchas 40m/s or 80m/s?
k transparent slabs are arranged one over another. The refractive indices of the slabs are $\mu_1,\mu_2,\mu_3, \ ...\mu_{\text{k}}$ and the thicknesses are t1, t2, t3, ... tk . An object is seen through this combination with nearly perpendicular light. Find the equivalent refractive index of the system which will allow the image to be formed at the same place.

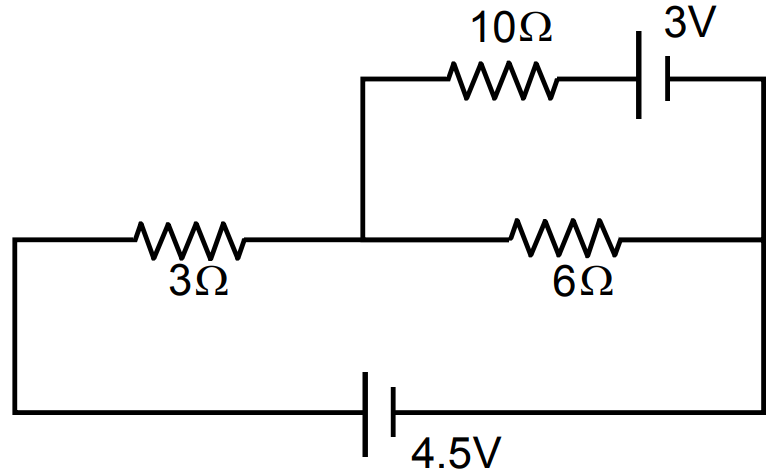

→Find the current through the $10\Omega$ resistor shown in figure.
→Two convex lenses, each of focal length 10cm, are placed at a separation of 15cm with their principal axes coinciding,
- Show that a light beam coming parallel to the principal axis diverges as it comes out of the lens system.
- Find the location of the virtual image formed by the lens system of an object placed far away.
- Find the focal length of the equivalent lens.
An emf $\varepsilon=100 \sin 314 t$ is applied across a pure capacitor of $637 \mu F$. Find
i. the instantaneous current I
ii. instantaneous power P
ii. the frequency of power and
iii. the frequency of power and
iv. the maximum energy stored in the capacitor.
→i. the instantaneous current I
ii. instantaneous power P
ii. the frequency of power and
iii. the frequency of power and
iv. the maximum energy stored in the capacitor.
Exlplain ac voltage applied on a series LCR circuit. Explain its solution by phasor diagram.

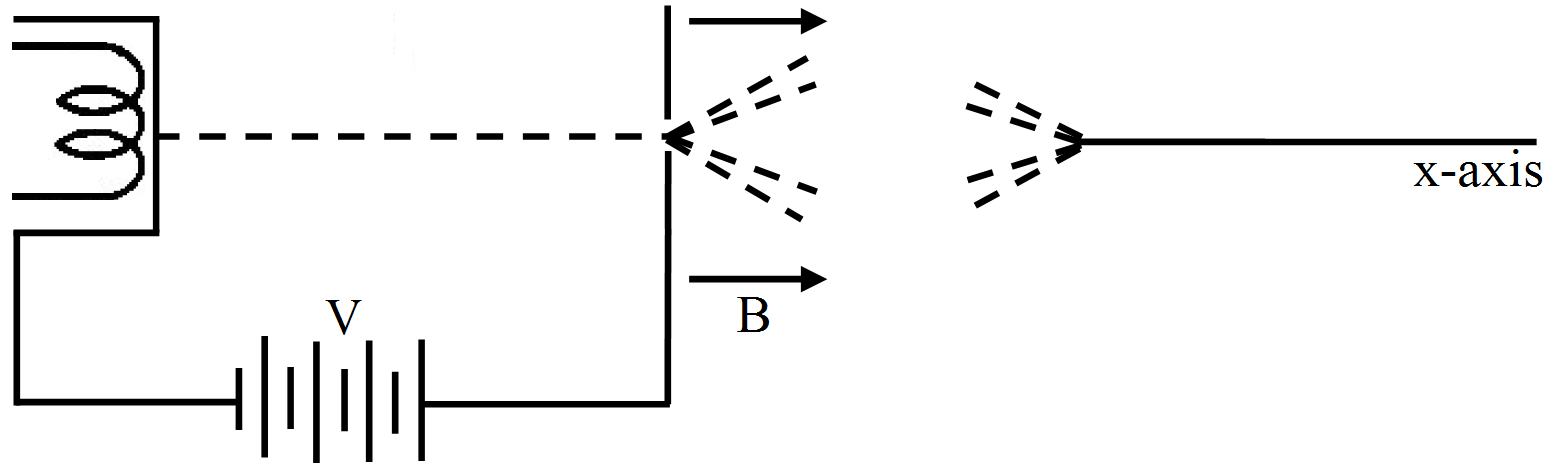

Electrons emitted with negligible speed from an electron gun are accelerated through a potential difference V along the x-axis. These electrons emerge from a narrow hole into a uniform magnetic field B directed along this axis. However, some of the electrons emerging from the hole make slightly divergent angles, as shown in the figure. Show that these paraxial electrons are refocussed on the x-axis at a distance $\sqrt{\frac{8\pi^2\text{mV}}{\text{eB}^2}}.$
