The components of velocity of a particle are as follows:
$
v_x=(5 t) m / s, v_y=(7 t) m / s
$
The value of acceleration of the particle is :
  • A
    12
  • ✓
    $\sqrt{74}$
  • C
    2
  • D
    zero
✓

Answer

Correct option: B.
$\sqrt{74}$
(B) Acceleration $\vec{a}=$
$
\begin{array}{l}
=\sqrt{\left(\frac{d v_x}{d t}\right)^2+\left(\frac{d v_y}{d t}\right)^2} \\
=\sqrt{(5)^2+(7)^2}=\sqrt{74}
\end{array}
$
Hence, the correct option is (B).

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q (1 Marks)" from PART - 1 CH - 3 Motion in a Plane→PART - 1 CH - 3 Motion in a Plane — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

A particle is doing simple harmonic motion of amplitude $0.06 \mathrm{~m}$ and time period $3.14 \mathrm{~s}$. The maximum velocity of the particle is. . . . .. . $\mathrm{cm} / \mathrm{s}$.
→
The capacity of a vessel is $3$ litres. It contains $6 \,gm$ oxygen, $8\, gm$ nitrogen and $5\, gm$ $C{O_2}$ mixture at $27°C.$ If $R = 8.31\, J/mole$ $ \times $ $kelvin,$ then the pressure in the vessel in $N/{m^2}$ will be (approx.)
→
Absolute temperature can be calculated by
→
A projectile is fired from the surface of the earth with a velocity of $5\, ms^{-1}$ and angle $\theta$ with the horizontal. Another projectile fired from another planet with a velocity of $3\, ms^{-1}$ at the same angle follows a trajectory which is identical with the trajectory of the projectile fired from the earth. The value of the acceleration due to gravity on the planet is (in $ms^{-2}$) is (given $g = 9.8\, m/s^2$)
→
Amount of heat required to raise the temperature of a body through $1 ^o C$ is called its
→

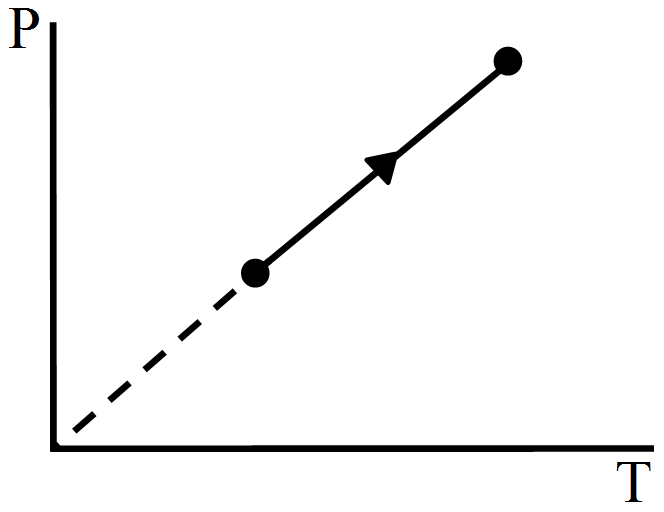

The process on an ideal gas, shown in figure. is:
→
