MCQ

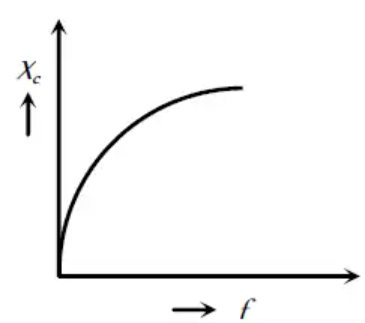

The correct curve representing the variation of capacitive reactance $X_c$ with frequency f is.

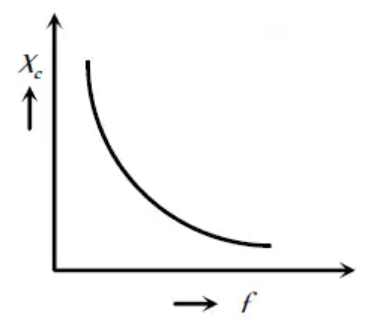

- A

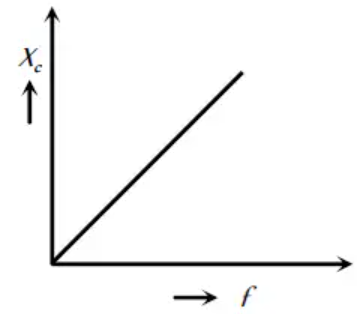

- B
- ✓

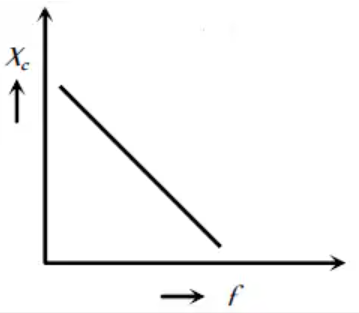

- D
✓
Answer
Correct option: C.
C. Explanation:
$\text{X}_\text{C}=\frac{1}{\text{C}2\pi\text{f}}$
$X_c$ and f are inversely proportional.
Explanation:$\text{X}_\text{C}=\frac{1}{\text{C}2\pi\text{f}}$
$X_c$ and f are inversely proportional.
