MCQ
The equivalent resistance between $A$ and $B$ is
- A$\frac {8R}{5}$
- ✓$\frac {5R}{8}$
- C$\frac {3R}{8}$
- D$\frac {7R}{8}$
✓
Answer
Correct option: B.
$\frac {5R}{8}$
b
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
The distance between the nearest node and antinode in a stationary wave is
The distance of neptune and saturn from sun are nearly ${10^{13}}$ and ${10^{12}}$ meters respectively. Assuming that they move in circular orbits, their periodic times will be in the ratio

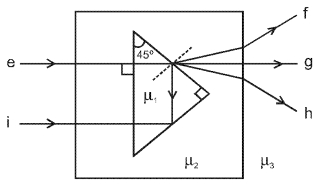

→A right angled prism of refractive index $\mu_1$ is placed in a rectangular block of refractive index $\mu_2$, which is surrounded by a medium of refractive index $\mu_3$, as shown in the figure, A ray of ligth 'e' enters the rectangular block at normal incidence. Depending upon the relationships between $\mu_1, \mu_2$ and $\mu_3$, it takes one of the four possible paths $'ef', 'eg', 'eh'$ or $'ei'$. $Image$
→Match the paths in List $I$ with conditions of refractive indices in List $II$ and select the correct answer using the codes given below the lists :
| List $I$ | List $II$ |
| $P$. $\quad e \rightarrow f$ | $1.$ $\quad \mu_1>\sqrt{2} \mu_2$ |
| $Q.$ $\quad e \rightarrow g$ | $2.$ $\quad \mu_1>\mu_1$ and $\mu_2>\mu_3$ |
| $R.$ $\quad e \rightarrow h$ | $3.$ $\quad \mu_1=\mu_2$ |
| $S.$ $\quad e \rightarrow i$ | $4.$ $\quad \mu_2<\mu_1<\sqrt{2} \mu_2$ and $\mu_2>\mu_3$ |
Codes: $\quad \quad P \quad Q \quad R \quad S $
The position $(x)$ of a particle moving along $x$-axis varies with time $(t)$ as shown in figure. The average acceleration of particle in time interval $t=0$ to $t=8 s$ is ........... $m / s ^2$
→$50\,\Omega $ and $100\,\Omega $ resistors are connected in series. This connection is connected with a battery of $2.4\, volts$. When a voltmeter of $100\,\Omega $ resistance is connected across $100\,\Omega $ resistor, then the reading of the voltmeter will be ............. $V$
→Consider the points lying on a straight line joining two fixed opposite charges. Between the charges there is
As shown in the figure, a plane mirror is fixed at a height of $50\,cm$ from the bottom of tank containing water $\left(\mu=\frac{4}{3}\right)$. The height of water in the tank is $8\,cm$. A small bulb is placed at the bottom of the water tank. The distance of image of the bulb formed by mirror from the bottom of the tank is $......cm$
→A train is moving with a speed of $30\, m \,s^{-1}$ in north-south direction on the rails separated by $2 \,m$. If the vertical component of earth’s field is $8 \times 10^{-5} \,T$, the $e.m.f.$ is
→Figure shows a projectile thrown with speed $u=20 \,m / s$ at an angle $30^{\circ}$ with horizontal from the top of a building $40 \,m$ high. Then the horizontal range of projectile is ........... $m$
→The equation of a stationary wave is $y = 0.8\cos \,\left( {\frac{{\pi x}}{{20}}} \right)\sin 200\,\pi t$, where $x$ is in $cm$ and $t$ is in sec. The separation between consecutive nodes will be..... $cm$
→
