Question
The given figure represents a solid consisting of a cylinder surmounted by a cone at one end and a hemisphere at the other. Find the volurne of the solid.
✓
Answer
Height of cylinder $= 6.5\ cm$
height of cone $= h_2$ =$ (12.8 - 6.5)cm = 6.3cm$
Radius of cylinder = radius of cone
= radius of hemisphere
$=\Big(\frac{7}{2}\Big)\text{cm}$
Volume of solid = volume of cylinder + volume of cone + volume of hemisphere
$=\pi\text{r}^2\text{h}_1+\frac{1}{3}\pi\text{r}^2\text{h}_2+\frac{2}{3}\pi\text{r}^2\Big(\text{h}_1+\frac{1}{3}\text{h}_2+\frac{2}{3}\text{r}\Big)$
$=\Big[\frac{22}{7}\times3.5\times3.5\times\Big(6.5+6.3\times\frac{1}{3}+\frac{2}{3}\times3.5\Big)\Big]$
$=[(38.5)\times(6.5+2.1+2.33)]\text{cm}^3$
$=(38.5\times10.93)\text{cm}^3=420.80\text{cm}^3$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
The sum of the radii of two circles is 7cm, and the differece of their circumferences is 8cm. Find the circumferences of the circleas.$\Big[\text{Use }\pi=\frac{22}{7}\Big]$

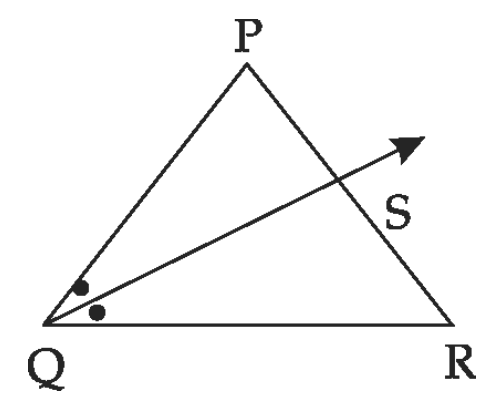

→In $\Delta$PQR, ray QS bisects $\angle$PQR. P-S-R. Show that $\frac{ A (\Delta PQS )}{ A (\Delta QRS )}=\frac{ PQ }{ QR }$.
