Question
The maximum speed and acceleration of a particle executing simple harmonic motion are $10\ cm/s$ and $50\ cm/s^2.$ Find the position$(s)$ of the particle when the speed is $8\ cm/s.$
✓
Answer
$\text{v}_{\text{max}}=10\ \text{cm/sec}.$
$\Rightarrow\text{r}\omega=10$
$\Rightarrow\omega^2=\frac{100}{\text{r}^2}\ ...(1)$
$\text{A}_{\text{max}}=\omega^2\text{r}=50\ \text{cm/sec}$
$\Rightarrow\omega^2=\frac{50}{\text{y}}=\frac{50}{\text{r}}\ ...(2)$
$\therefore\frac{100}{\text{r}^2}=\frac{50}{\text{r}}$
$\Rightarrow\text{r}=2\ \text{cm}.$
$\therefore\omega=\sqrt{\frac{100}{\text{r}^2}}=5\sec^2$
Again, to find out the positions where the speed is $8\ \text{m/sec,}$
$\text{v}^2=\omega^2(\text{r}^2-\text{y}^2)$
$\Rightarrow64=25(4-\text{y}^2)$
$\Rightarrow4-\text{y}^2=\frac{64}{25}$
$\Rightarrow\text{y}^2=1.44$
$\Rightarrow\text{y}=\sqrt{1.44}$
$\Rightarrow\text{y}=\pm1.2\ \text{cm}$ from mean position.
$\Rightarrow\text{r}\omega=10$
$\Rightarrow\omega^2=\frac{100}{\text{r}^2}\ ...(1)$
$\text{A}_{\text{max}}=\omega^2\text{r}=50\ \text{cm/sec}$
$\Rightarrow\omega^2=\frac{50}{\text{y}}=\frac{50}{\text{r}}\ ...(2)$
$\therefore\frac{100}{\text{r}^2}=\frac{50}{\text{r}}$
$\Rightarrow\text{r}=2\ \text{cm}.$
$\therefore\omega=\sqrt{\frac{100}{\text{r}^2}}=5\sec^2$
Again, to find out the positions where the speed is $8\ \text{m/sec,}$
$\text{v}^2=\omega^2(\text{r}^2-\text{y}^2)$
$\Rightarrow64=25(4-\text{y}^2)$
$\Rightarrow4-\text{y}^2=\frac{64}{25}$
$\Rightarrow\text{y}^2=1.44$
$\Rightarrow\text{y}=\sqrt{1.44}$
$\Rightarrow\text{y}=\pm1.2\ \text{cm}$ from mean position.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
A light ray falling at an angle of $45^\circ$ with the surface of a clean slab of ice of thickness $1m$ is refracted into it at an angle of $30^\circ$ . Calculate the time taken by the light rays, to cross the slab. Speed of light in vacuum $= 3 \times 10^8\ m/s$
→A sample of paramagnetic salt contains $2.0 \times 10^{24}$ atomic dipoles each of dipole moment $1.5 \times 10^{–23} J T^{–1}$. The sample is placed under a homogeneous magnetic field of $0.64 T,$ and cooled to a temperature of $4.2 K$. The degree of magnetic saturation achieved is equal to $15\%$. What is the total dipole moment of the sample for a magnetic field of $0.98 T$ and a temperature of $2.8 K$? $($Assume Curie’s law$)$
→- A giant refracting telescope at an observatory has an objective lens of focal length $15\ m$. If an eyepiece of focal length $1.0 \ cm$ is used, what is the angular magnification of the telescope?
- If this telescope is used to view the moon, what is the diameter of the image of the moon formed by the objective lens? The diameter of the moon is $3.48 \times 10^{6 }m,$ and the radius of lunar orbit is $3.8 \times 10^{8 }m.$
A homogeneous poorly conducting medium of resistivity fills up the space between two thin coaxial ideally conducting cylinders. The radii of the cylinders are equal to a and b with a < b, the length of each cylinder is l. Neglecting the edge effects, find the resistance of the medium between the cylinders.
Two identically charged particles are fastened to the two ends of a spring of spring constant $100Nm^{-1}$ and natural length $10\ cm.$ The system rests on a smooth horizontal table. If the charge on each particle is $2.0 \times 10^{-8}C$, find the extension in the length of the spring. Assume that the extension is small as compared to the natural length. Justify this assumption after you solve the problem.
→When a photon is emitted by a hydrogen atom, the photon carries a momentum with it. $(a)$ Calculate the momentum carries by the photon when a hydrogen atom emits light of wavelength $656.3\ nm. (b)$ With what speed does the atom recoil during this transition? Take the mass of the hydrogen atom $= 1.67 \times 10^{-27}kg. (c)$ Find the kinetic energy of recoil of the atom.

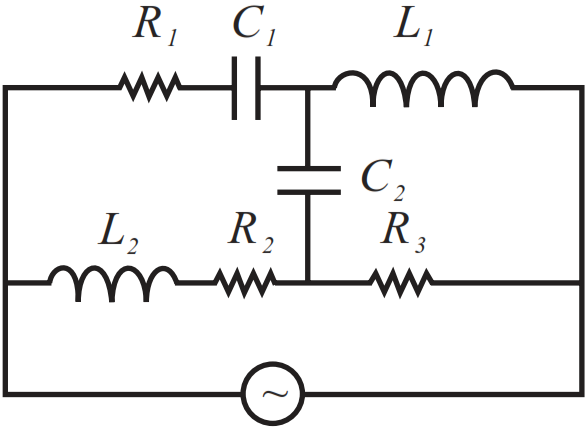

→Draw the effective equivalent circuit of the circuit shown in Fig, at very high frequencies and find the effective impedance.
