Question
The minimum deviations suffered by red, yellow and violet beams passing through an equilateral transparent prism are 38.4°, 38.7° and 39.2° respectively. Calculate the dispersive power of the medium.
✓
Answer
Given that, $\delta_\text{r}=38.4^\circ,\delta_\text{y}=38.7^\circ\ \text{and}\ \delta_\text{v}=39.2^\circ$
Dispersive power $=\frac{\mu_\text{v}-\mu_\text{r}}{\mu_\text{y}-1}=\frac{(\mu_\text{v}-1)-(\mu_\text{r}-1)}{(\mu_\text{y}-1)}$ $=\frac{\Big(\frac{\delta_\text{v}}{\text{A}}\Big)-\Big(\frac{\delta_\text{r}}{\text{A}}\Big)}{\Big(\frac{\delta_\text{v}}{\text{A}}\Big)}\ [\because\delta=(\mu-1)\text{A}]$
$=\frac{\delta_\text{v}-\delta_\text{r}}{\delta_\text{y}}=\frac{39.2-3.84^\circ}{38.7}=0.0204$
Dispersive power $=\frac{\mu_\text{v}-\mu_\text{r}}{\mu_\text{y}-1}=\frac{(\mu_\text{v}-1)-(\mu_\text{r}-1)}{(\mu_\text{y}-1)}$ $=\frac{\Big(\frac{\delta_\text{v}}{\text{A}}\Big)-\Big(\frac{\delta_\text{r}}{\text{A}}\Big)}{\Big(\frac{\delta_\text{v}}{\text{A}}\Big)}\ [\because\delta=(\mu-1)\text{A}]$
$=\frac{\delta_\text{v}-\delta_\text{r}}{\delta_\text{y}}=\frac{39.2-3.84^\circ}{38.7}=0.0204$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
What is image? Explain its types.

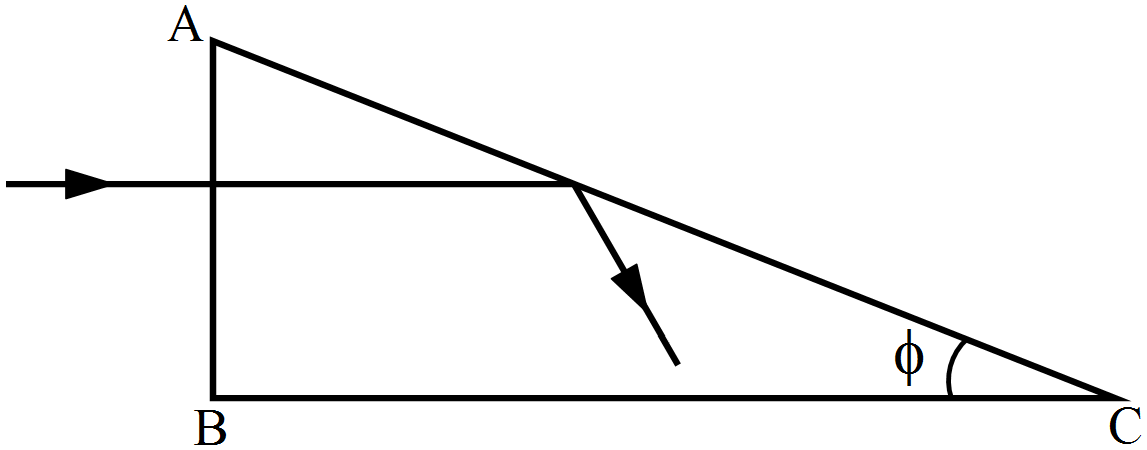

A light ray is incident normally on the face AB of a right-angled prism ABC $(\mu=1.50)$ as shown in figure. What is the largest angle $\phi$ for which the light ray is totally reflected at the surface AC?
