MCQ

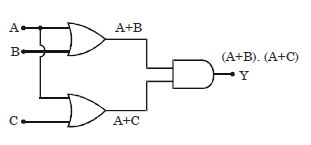

The output of given logic circuit is
- A$A \cdot \left( {B + C} \right)$
- B$A \cdot \left( {B \cdot C} \right)$
- ✓$\left( {A + B} \right) \cdot (A + C)$
- D$A + B + C$
✓
Answer
Correct option: C.
$\left( {A + B} \right) \cdot (A + C)$
