The parallel combination of two air filled parallel plate capacitors of capacitance $C$ and $nC$ is connected to a battery of voltage, $V$. When the capacitor are fully charged, the battery is removed and after that a dielectric material of dielectric constant $K$ is placed between the two plates of the first capacitor. The new potential difference of the combined system is
JEE MAIN 2019, Diffcult
Download our app for free and get started

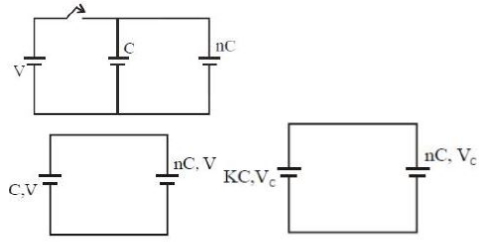

After fully charging, battery is disconnected.
Total chare of the system $=\mathrm{CV}+\mathrm{nCV}$
$=(n+1) C V$
After the insertion of dielectric of constant $\mathrm{K}$ New potential (common) $\mathrm{V}_{\mathrm{c}}=\frac{\text { Total charge }}{\text { Total capacitance }}$
$=\frac{(n+1) C V}{K C+n C}=\frac{(n+1) V}{K+n}$
