Question

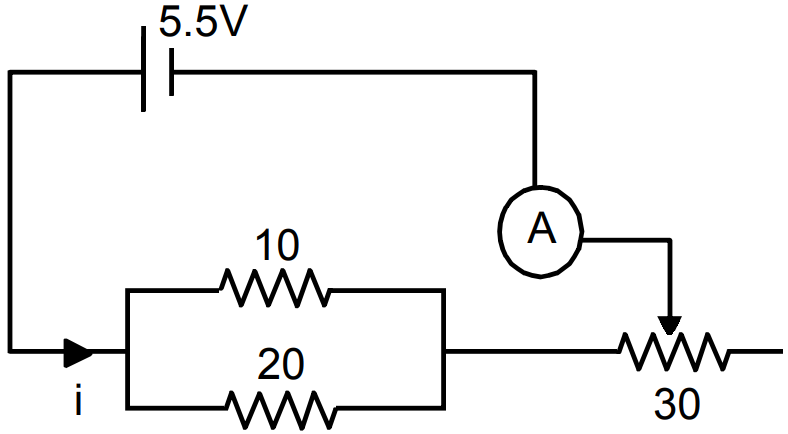

The resistance of the rheostat shown in the figure. is $30\Omega.$ Neglecting the meter resistance, find the minimum and maximum currents through the ammeter as the rheostat is varied.
✓
Answer

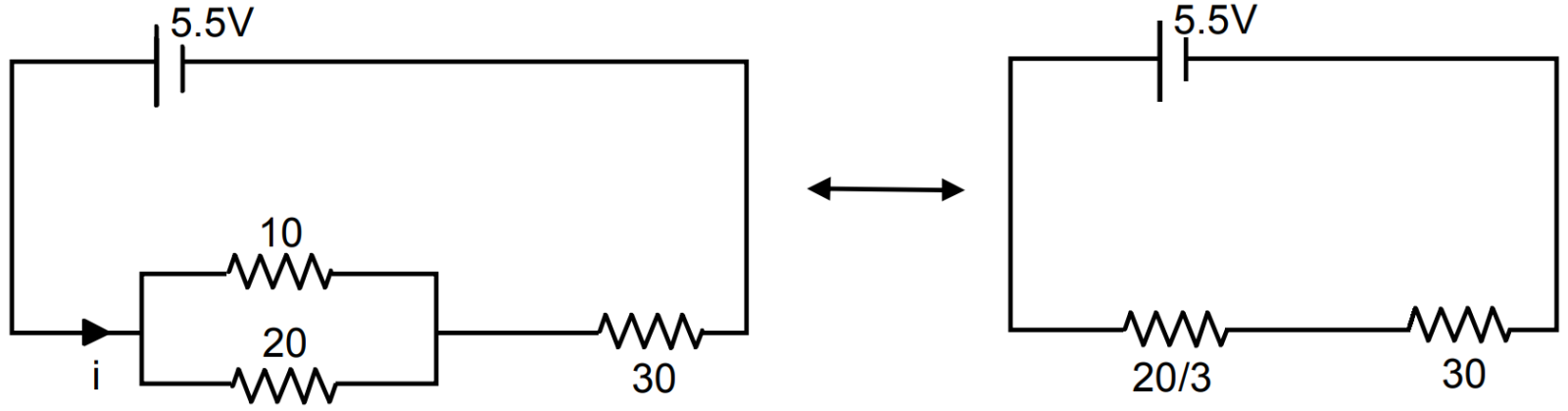

$\text{i}_\text{min}=\frac{5.5\times3}{110}=0.15$

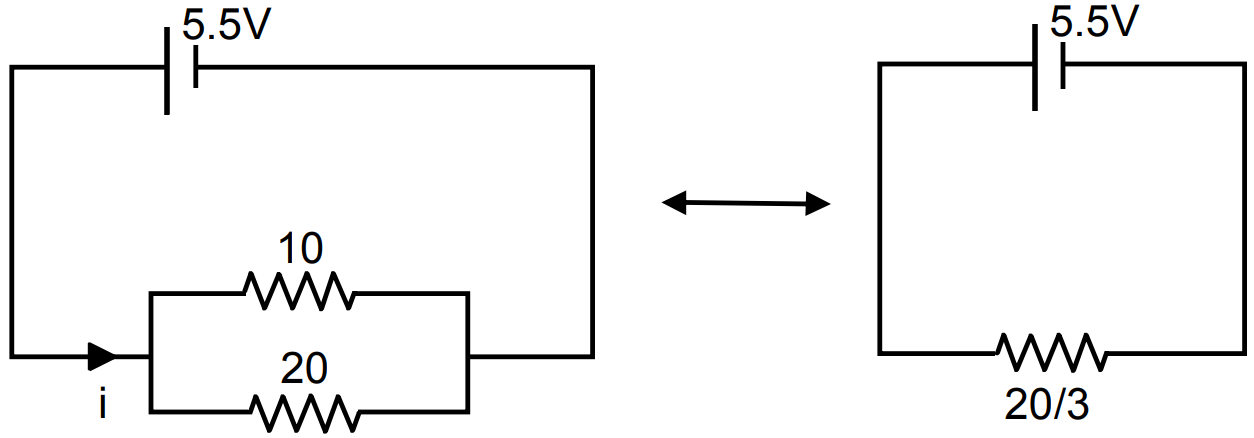

$\text{i}_\text{min}=\frac{5.5\times3}{20}=\frac{16.5}{20}=0.825.$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Three vessels of equal capacity have gases at the same temperature and pressure. The first vessel contains neon (monatomic), the second contains chlorine (diatomic), and the third contains uranium hexafluoride (polyatomic). Do the vessels contain equal number of respective molecules? Is the root mean square speed of molecules the same in the three cases? If not, in which case is vrms the largest?

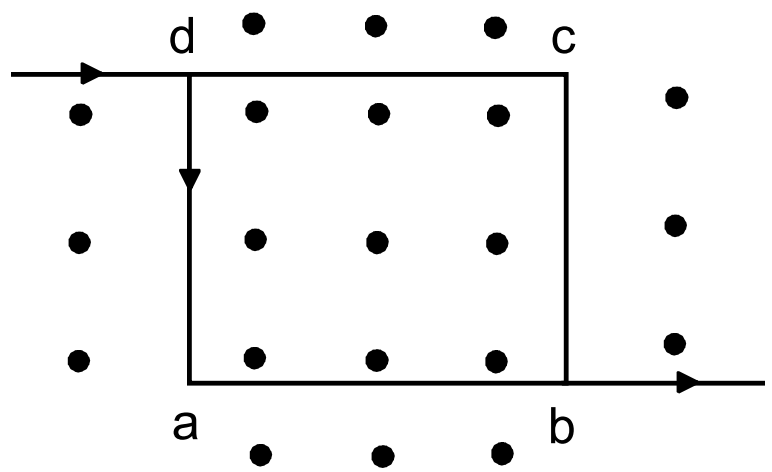

A current of 2A enters at the corner d of a square frame abcd of side 20cm and leaves at the opposite corner b. A magnetic field B = 0.1 T exists in the space in a direction perpendicular to the plane of the frame, as shown in the figure. Find the magnitude and direction of the magnetic forces on the four sides of the frame.

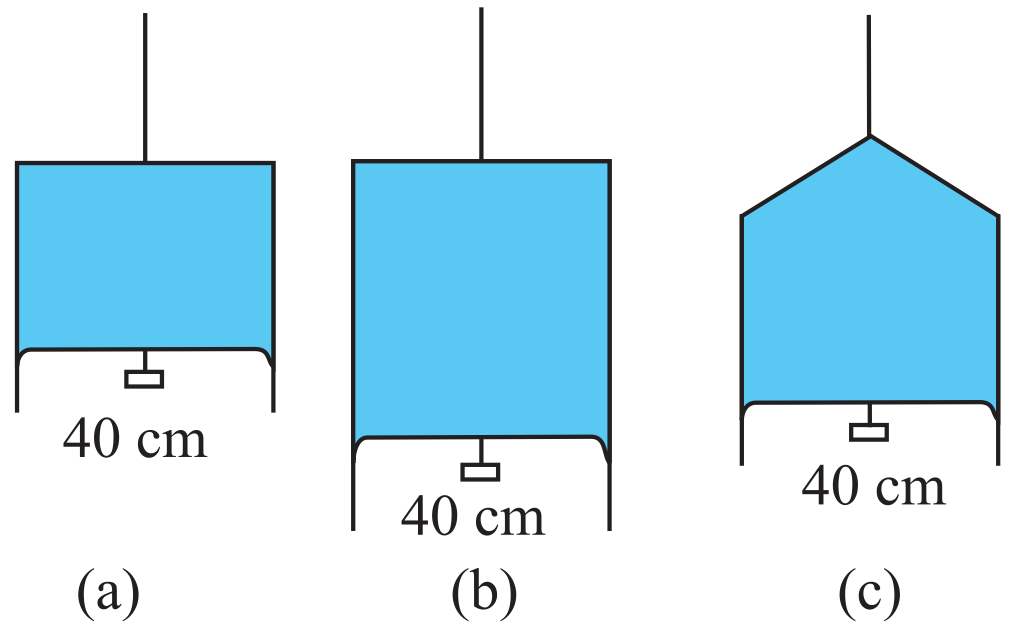

Figure (a) shows a thin liquid film supporting a small weight = $4.5 \times 10^{–2}N$. What is the weight supported by a film of the same liquid at the same temperature in Fig. (b) and (c)? Explain your answer physically.
→A convex lens has a focal length of 10cm. Find the location and nature of the image if a point object is placed on the principal axis at a distance of:
- 9.8cm
- 10.2cm from the lens.
Three capacitors having capacitances $20\mu\text{F},\ 30\mu\text{F}$ and $40\mu\text{F}$ are connected in series with a 12V battery. Find the charge on each of the capacitors. How much work has been done by the battery in charging the capacitors?
→The emf $\in$ and the internal resistance r of the battery, shown in the figure. are 4.3V and $1.0\Omega$ respectively. The external resistance R is $50\Omega.$ The resistances of the ammeter and voltmeter are $2.0\Omega$ and $200\Omega$ respectively. (a) Find the readings of the two $200\Omega$ respectively. (a) Find the readings of the two meters. (b) The switch is thrown to the other side. What will be the readings of the two meters now?
→One mole of an ideal gas at standard temperature and pressure occupies $22.4 L$ (molar volume). What is the ratio of molar volume to the atomic volume of a mole of hydrogen? (Take the size of hydrogen molecule to be about $1\mathring{\text{A}}$). Why is this ratio so large?
→Establish an expression for potential energy for the inner points of a spherical object.
A particle is executing S.H.M. If $v_1$ and $v_2$ are the speeds of the particle at distance $x_1$ and $x_2$ from the equilibrium position, show that the frequency of oscillations is
$\text{f}=\frac{1}{2\pi}\bigg(\frac{\text{v}^2_1-\text{v}^2_2}{\text{x}^2_2-\text{x}^2_1}\bigg)^{\frac{1}{2}}$
→$\text{f}=\frac{1}{2\pi}\bigg(\frac{\text{v}^2_1-\text{v}^2_2}{\text{x}^2_2-\text{x}^2_1}\bigg)^{\frac{1}{2}}$
A rod of negligible heat cafacity has length $20cm$, area of cross section $1.0cm$ and thermal conductivity $200Wm^{-1^\circ}C^{-1}$. The temperature of one end is maintained at $0^\circ C$ and that of the other end is slowly and linearly varied from $0^\circ C$ to $60^\circ C$ in 10 minutes. Assuming no loss of heat through the sides, find the total heat transmitted through the rod in these $10$ minutes.
→
