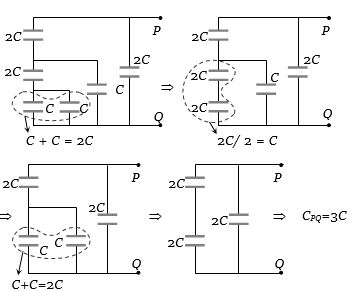

The resultant capacitance of given circuit is
Medium
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1Two circuits $(a)$ and $(b)$ have charged capacitors of capacitance $C, 2C$ and $3C$ with open switches. Charges on each of the capacitor are as shown in the figures. On closing the switchesView Solution
- 2The value of equivalent capacitance of the combination shown in figure between the points $P$ and $Q$ isView Solution
- 3Two charged capacitors have their outer plates fixed and inner plates connected by a spring of force constant ' $k$ '. The charge on each capacitor is q. Find the extension in the spring at equilibriumView Solution
- 4Three capacitors each having capacitance $C = 2\,\mu F$ are connected with a battery of $e.m.f.$ $30\, V$ as shown in the figure. When the switch $S$ is closed, then select the incorrect statementView Solution
- 5For an infinite line of charge having charge density $\lambda $ lying along $x-$ axis, the work required in moving charge $q$ from $C$ to $A$ along arc $CA$ is :-View Solution
- 6A condenser has a capacity $2\,\mu \,F$ and is charged to a voltage of $50\, V$. The energy stored isView Solution
- 7In the circuit shown, a potential difference of $60\,V$ is applied across $AB$. The potential difference between the point $M$ and $N$ is.....$V$View Solution
- 8Figure shows a charged conductor resting on an insulating stand. If at the point $P$ the charge density is $\sigma $, the potential is $V$ and the electric field strength is $E$, what are the values of these quantities at point $Q$View Solution
Charge density potential Electric intensity
- 9Three long concentric conducting cylindrical shells have radii $R, 2R$ and $2\sqrt 2 $ $ R$ . Inner and outer shells are connected to each other. The capacitance across middle and inner shells per unit length is:View Solution
- 10A solid uncharged conducting sphere has radius $3a$ contains a hollowed spherical region of radius $2a$. A point charge $+Q$ is placed at a position a distance a from the common center of the spheres. What is the magnitude of the electric field at the position $r = 4a$ from the center of the spheres as marked in the figure by $P?$ $\left( {k = \frac{1}{{4\pi { \in _0}}}} \right)$View Solution
