MCQ
The transistors provide good power amplification when they are used in
- ACommon collector configuration
- ✓Common emitter configuration
- CCommon base configuration
- DNone of these
✓
Answer
Correct option: B.
Common emitter configuration
b
The transistor provide good power amplification when they are used in Common emitter configuration.
The transistor provide good power amplification when they are used in Common emitter configuration.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Two small spheres each having the charge +Q are suspended by insulating threads of length L from a hook. This arrangement is taken in space where there is no gravitational effect, then the angle between the two suspensions and the tension in each will be

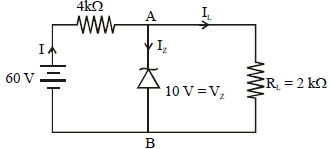

A Zener diode is connected to a battery and a load as show below: The currents, $I, I_Z$ and $I_L$ are respectively .
