Waves — Physics STD 11 Science — Question

Gujarat BoardEnglish MediumSTD 11 SciencePhysicsWaves5 Marks
Question
The transverse displacement of a string (clamped at its both ends) is given by
$\text{y}(\text{x, t})=0.06\sin\Big(\frac{2\pi}{3}\text{x}\Big)\cos(120\pi\text{ t})$
where x and y are in m and t in s. The length of the string is $1.5m$ and its mass is $3.0 \times 10^{–2}kg$.
Answer the following:
Interpret the wave as a superposition of two waves travelling in opposite directions. What is the wavelength, frequency, and speed of each wave?
✓

Answer

A wave travelling along the positive x-direction is given as: $\text{y}_1=\text{a}\sin(\omega\text{t}-\text{kx})$The wave travelling along the negative x-direction is given as:
$\text{y}_2=\text{a}\sin(\omega\text{t}-\text{kx})$ The superposition of these two waves yields: $\text{y}=\text{y}_1+\text{y}_2=\text{a}\sin(\omega\text{t}-\text{kx})-\text{a}\sin(\omega\text{t}-\text{kx})$
$=\text{a}\sin(\omega\text{t})\cos(\text{kx})-\text{a}\sin(\text{kx})\cos(\omega\text{t})-\text{a}\sin(\omega\text{t})\cos(\text{kx})-\text{a}\sin(\text{kx})\cos(\omega\text{t})$
$=-2\text{a}\sin(\text{kx})\cos(\omega\text{t})$
$=-2\text{a}\sin\Big(\frac{2\pi}{\lambda}\text{x}\Big)\cos(2\pi\text{ vt})\ \dots(\text{i})$ The transverse displacement of the string is given as: $\text{y}(\text{x, t})=0.06\sin\Big(\frac{2\pi}{3}\text{x}\Big)\cos(120\pi\text{ t})\ \dots(\text{ii})$ Comparing equations (i) and (ii), we have: $\frac{2\pi}{\lambda}=\frac{2\pi}{3}$
$\therefore$ Wavelength, $\lambda=3\text{m}$ It is given that: $120\pi=2\pi\text{v}$ Frequency, $\text{v} = 60\text{Hz}$ Wave speed, $\text{v}=\text{v}\lambda$
$=60\times3=180\text{m/s}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Waves→Waves — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

If the above capacitor is connected across a $6.0V$ battery, find:
  1. The charge supplied by the battery.
  2. The induced charge on the dielectric.
  3. The net charge appearing on one of the coated surfaces.
→

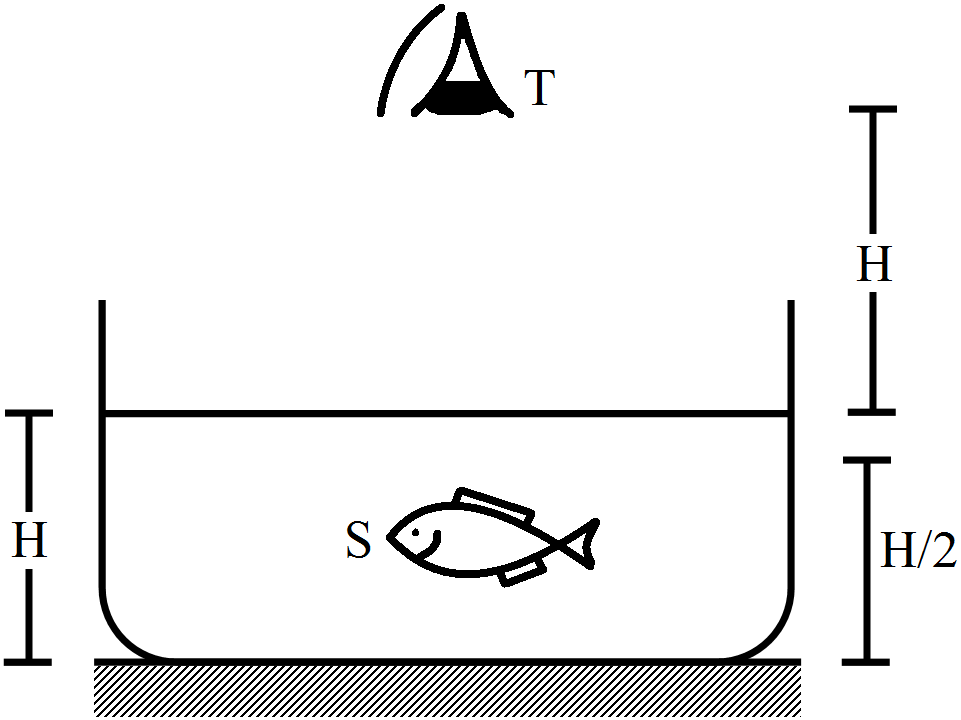

Consider the situation in figure. The bottom of the pot is a reflecting plane mirror, S is a small fish and T is a human eye. Refractive index of water is.
  1. At what distance(s) from itself will the fish see the image(s) of the eye?
  2. At what distance(s) from itself will the eye see the image(s) of the fish.
→

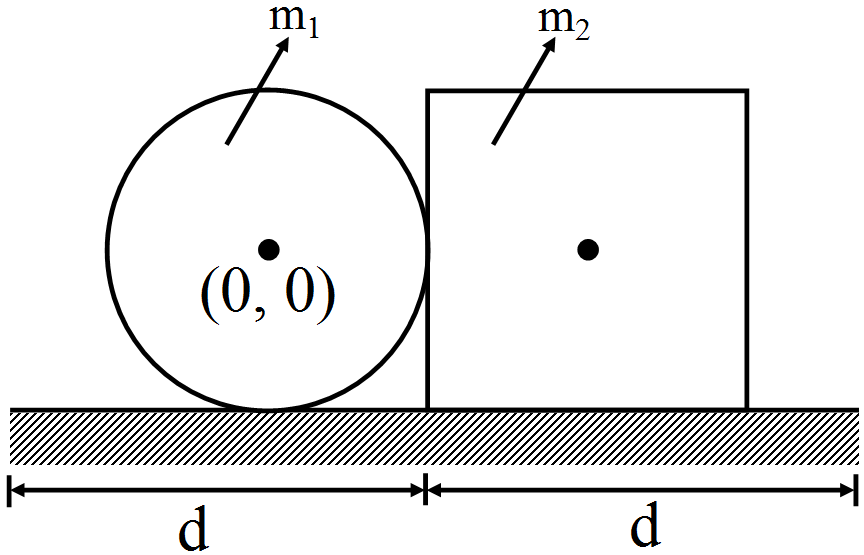

A square plate of edge d and a circular disc of diameter d are placed touching each other at the midpoint of an edge of the plate as shown in figure. Locate the centre of mass of the combination, assuming same mass per unit area for the two plates.
→
