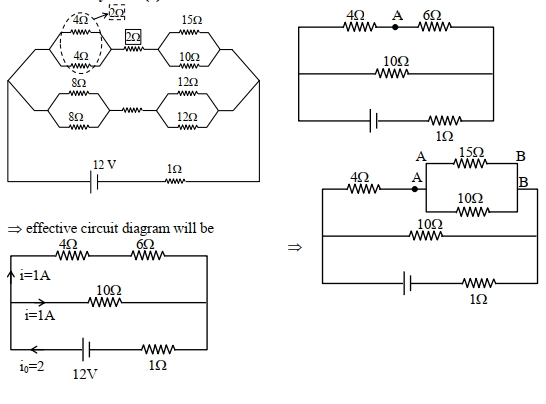

The voltage drop across $15\, \Omega$ resistance in the given figure will be $.....V.$
JEE MAIN 2021, Diffcult
