MCQ

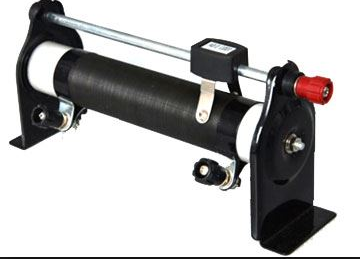

The wire wound resistor is also known as:
- AVariable resistor
- BRheostat
- CCircular coil
- DBoth a and b
✓
Answer
- Both a and b
Explanation:
It is rheostat
