Question

Three appliances are connected in parallel to the same source which provides a voltage of 220V. A fuse connected to the source will blow if the current from the source exceeds 10A. If the three appliances are rated at 60W, 500W and 1200W at 220V, will the fuse blow?

✓

Answer

Voltage of power supply, V = 220V
Power rating of the first appliance = 60W
So, current drawn by the first appliance $=\frac{60}{220}=0.27\text{A}$
Power rating of the second appliance = 500W
So, current drawn by the second appliance $=\frac{500}{220}=2.27\text{A}$
Power rating of the first appliance = 1200W
So, current drawn by the first appliance $=\frac{1200}{220}=5.45\text{A}$
Net current drawn by all the appliances = 0.27 + 2.27 + 5.45 = 5.99A
It is given that the rating of the fuse is 10 A. It will not blow when all the appliances are used together because current capacity of the fuse is more than the value of current drawn by the device.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "Answer the following questions: [3 M]" from Magnetic Effects of Electric Current→Magnetic Effects of Electric Current — all question types→Science STD 10 question papers→Maharashtra Board STD 10 question papers→Maharashtra Board question paper generator→

Similar questions

Name the defect of vision which can be corrected by a diverging lens. Show clearly by a ray diagram how the lens corrects the defect.

What is refraction of light?

Why is it necessary to ban the use of plastic bags?

i. Which process is shown in the above given picture?
ii. Give two examples for liquid fuels and solid fuels obtained by this process.

You must have seen or read the news of dead fishes or oily water accumulating at the sea coasts. Why does this happen? (Can you tell: Textbook Page no. 84)

Draw a ray diagram to show image formation by a concave lens.

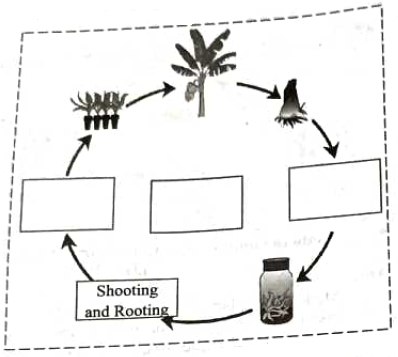

Complete the diagram showing various processes in tissue culture.
